Dalian Yheng Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of non-contact radar flow meter in China. Welcome to buy high quality non-contact radar flow meter in stock here from our factory. If you have any enquiry about customized service, please feel free to email us.
|
Parameter Category |
Specific Parameter |
Specification Value |
Remarks |
|
Flow Velocity Measurement |
Velocity Range |
0.1 m/s ~ 25 m/s |
/ |
|
Measurement Accuracy |
±0.01m/s |
Calibrated by radar simulator |
|
|
Pitch Angle |
0° - 80° |
Automatic compensation |
|
|
Antenna Beam Angle |
12°×25° |
/ |
|
|
Ranging (Water Level Measurement) |
Ranging Blind Zone |
8cm |
/ |
|
Maximum Ranging Distance |
60m |
/ |
|
|
Ranging Accuracy |
±1mm |
/ |
|
|
Antenna Beam Angle |
6°×6° |
/ |
|
|
Max Distance from Radar to Water Surface |
30m |
/ |
|
|
Power Supply Parameters |
Supply Voltage Range |
9 ~ 30 VDC |
/ |
|
Operating Current |
13-15mA@24V |
/ |
|
|
Communication Parameters |
Communication Interface |
RS485, Bluetooth 5.2 |
/ |
|
Communication Protocol |
Modbus-RTU |
Baud rate 9600/115200, 9600 as default |
|
|
Environmental Parameters |
Operating Temperature |
-20℃ - 70℃ |
/ |
|
Protection Grade |
IP68 |
Internal glue filling, waterproof design |
|
|
Hardware Parameters |
Housing Material |
Aluminum alloy, PBT |
/ |
|
Device Dimensions |
155mm×79mm×94mm |
L×W×H |
|
|
Measurement Performance |
Default Measurement Cycle |
1s |
Built-in adaptive scenario algorithm |
|
Supported Measurement Types |
Flow velocity, Water level, Flow rate |
Non-contact, simultaneous output without mutual interference |
|
|

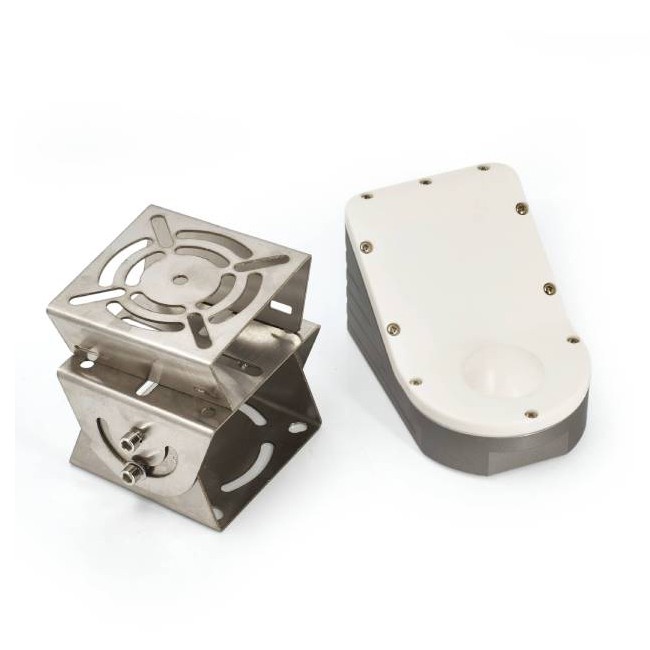

Installation Accessories |
Installation Method |
Bracket fixation |
With built-in level bubble for easy installation and adjustment |
Features
● Advanced non-contact hybrid frequency radar technology
● IP68 waterproof, aluminum alloy + PBT robust construction
● High-precision specs: 0.1-25m/s velocity, 60m water level range
● Built-in gyroscope for automatic installation angle compensation
● Integrated anti-reverse, lightning & overvoltage protection
● Dual communication: RS485(Modbus-RTU) + Bluetooth 5.2
Applications

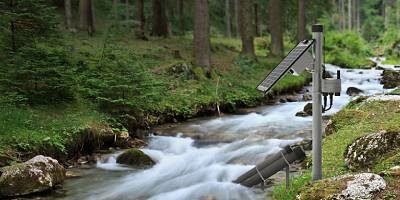

Ideal for hydrological monitoring in diverse scenarios, supports water resource management, environmental protection and engineering with stable, precise non-contact flow measurement.
