Flow Meter
Product Overview
Industrial flow meters provide continuous volumetric and mass flow measurement for conductive and non-conductive liquids, gases, and steam within closed pipe networks. Engineered for heavy industrial operating conditions, these units integrate direct digital signal processing (DSP) to maintain measurement stability under fluctuating pressure and temperature profiles. Built for direct integration into PLC and DCS control architectures through standardized industrial communication protocols.
-
![Steam Vortex Flow Meter]()
-
![Portable Ultrasonic Flow Meter]()

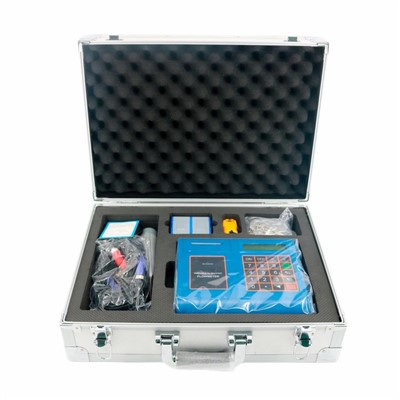

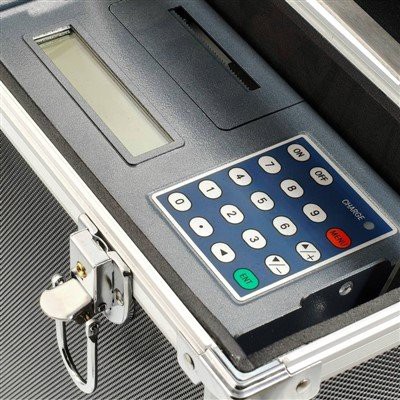

Portable Ultrasonic Flow MeterThis handheld ultrasonic flow meter delivers non‑contact liquid flow measurement. Simply attach its sensors onto the outer surface of a pipe to start taking flow readings. Boasting compact...read more -
![Handheld Ultrasonic Flow Meter]()

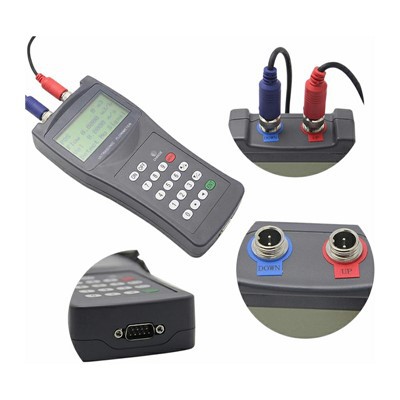

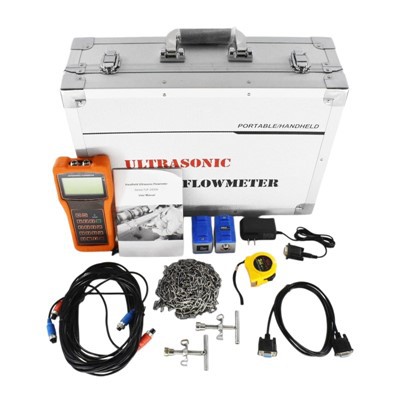

Handheld Ultrasonic Flow MeterThe handheld ultrasonic flow meter realizes non‑contact liquid flow measurement. Simply mount the sensors on the outer pipe wall to complete flow measurement. Featuring compact size, lightweight...read more -
![Metal Rotameter Flow Meter]()
Metal Rotameter Flow MeterThe metal tube floater flow meter, commonly known as **metal rotameter**, is a variable‑area flow instrument widely used in industrial process automation. It measures the flow of liquids, gases...read more -
![LC Oval Gear Flow Meter]()
LC Oval Gear Flow MeterThe LC series oval gear flowmeter is a type of volumetric flow meter. It performs continuous or intermittent metering and control for liquid flow in pipelines, and is widely applied for...read more -
![Wall‑mount Doppler Ultrasonic Flowmete]()
Wall‑mount Doppler Ultrasonic FlowmeteThis is a split‑structure Doppler ultrasonic flowmeter. It consists of an IP68 submersible transducer and a wall‑mount transmitter, interconnected by waterproof cable. Based on Doppler...read more -
![Explosion-proof Coriolis Mass Flow Meter]()
Explosion-proof Coriolis Mass Flow MeterThe TCMF‑series Coriolis mass flowmeter delivers high‑precision flow and density measurement. It provides highly accurate and repeatable mass‑measurement performance for liquids and slurries, and...read more -
![Flange-end Ultrasonic BTU Meter]()
Flange-end Ultrasonic BTU MeterThis series is large‑diameter flange‑type ultrasonic BTU meter with flange connection, covering DN50 to DN400. It is applied for heat/cool‑energy measurement in building units, heat‑exchange...read more -
![Flange-connected Thermal Mass Flow Meter]()
Flange-connected Thermal Mass Flow MeterThe thermal gas mass flowmeter is an industrial instrument for gas mass‑flow measurement. It works on the thermal‑diffusion principle with constant temperature‑difference method. It directly...read more -
![Insertion Thermal Mass Flow Meter]()
Insertion Thermal Mass Flow MeterThe thermal gas mass flow meter is designed based on the principle of thermal diffusion, which uses the constant temperature difference method to accurately measure the gas. The utility model...read more -
![Portable Doppler Flow Meter]()
Portable Doppler Flow MeterAcoustic Doppler flow velocity meter is a flow rate detection instrument used in rivers, open channels and pipelines. It uses ultrasonic detection technology, high measurement accuracy, good...read more -
![Fixed Doppler Ultrasonic Flow Meter]()
Fixed Doppler Ultrasonic Flow MeterUltrasonic Doppler Flowmeter is a kind of sensor that measures flow velocity and flow rate in natural waters, channels or non-full pipes.read more
Measurement & Testing Principle
Depending on the selected configuration, the series operates on established physical measurement principles:
Electromagnetic (Magmeter)
Applies Faraday's Law of Electromagnetic Induction. A magnetic field is generated across the pipe, and the velocity of conductive media (conductivity >= 5 uS/cm) induces a proportional voltage sensed by isolated electrodes.
Ultrasonic (Transit-Time)
Measures the time differential between acoustic signals transmitted upstream and downstream, calculating fluid velocity independent of media conductivity.
Vortex
Detects the frequency of von Karman vortex shedding behind a blunt bluff body inserted in the flow, directly proportional to flow velocity for liquids, gases, and steam.
Product Types & Configurations
Inline Electromagnetic Flow Meter
Remote or compact transmitter housing; PTFE/PFA or polyurethane lining; 316L stainless steel or Hastelloy C electrodes.

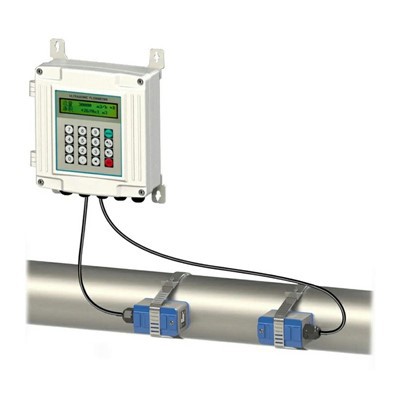

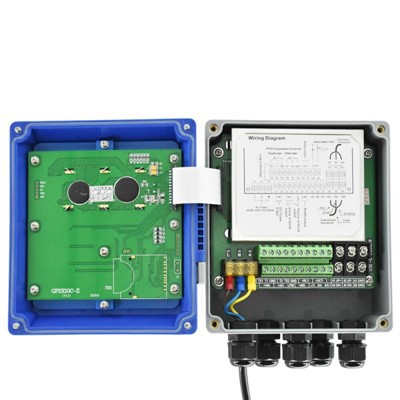

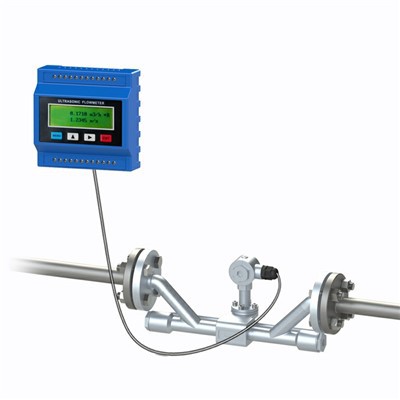

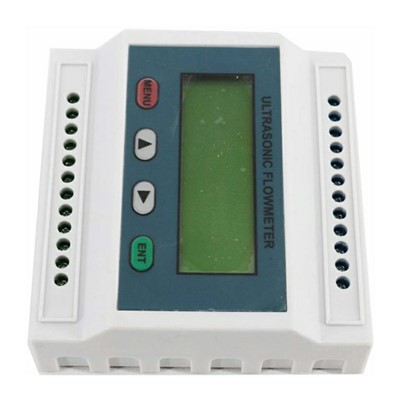

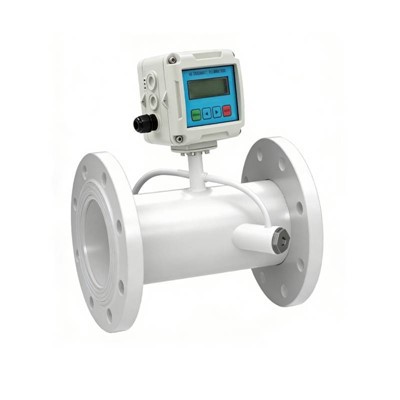

Clamp-on / Insertion Ultrasonic Flow Meter
Non-invasive or hot-tap installation; engineered for large-diameter retrofits without process shutdown.
Vortex Flow Meter
Integrated temperature and pressure compensation sensors for mass flow calculation of saturated and superheated steam.
Key Features
-
Zero Pressure Drop
Inline obstacle-free flow paths (Electromagnetic and Ultrasonic models) eliminate permanent head loss and reduce pumping energy consumption.
-
High Turndown Ratio
Operates accurately across a 100:1 flow range, accommodating both peak and minimum baseline flow rates.
-
Bi-directional Measurement
Continuously registers forward and reverse flow volumes with dedicated totalizer registers.
-
Robust Transmitter Enclosure
Die-cast aluminum housing rated to IP67/NEMA 4X, powder-coated for chemical and salt-spray resistance.
Technical Specifications
|
Specification Parameter |
Standard Configuration |
High-Performance Configuration |
|
Nominal Pipe Size (DN) |
DN15 – DN300 (1/2" to 12") |
DN10 – DN2000 (3/8" to 80") |
|
Base Accuracy |
+/- 0.5% of reading (Liquid) |
+/- 0.2% of reading (Liquid / Custody Transfer) |
|
Process Temperature |
-20°C to +80°C |
Up to +250°C (Vortex Steam variant) |
|
Max Working Pressure |
PN16 / 1.6 MPa (ANSI Class 150) |
PN40 / 4.0 MPa (ANSI Class 300) |
|
Wetted Materials |
316L Stainless Steel, PTFE, Rubber |
Titanium, Hastelloy C-276, Ceramic |
|
Analog Output |
4–20 mA (Active/Passive, isolated) |
4–20 mA with HART Protocol |
|
Digital Communication |
Modbus RTU / RS485 |
Profibus PA, Foundation Fieldbus |
|
Power Supply |
85–265 VAC (50/60Hz) or 24 VDC |
24 VDC loop-powered (selected models) |
|
Enclosure Protection & Ex-Rating |
IP65 |
IP67 / Explosion-Proof Zone 1 |
Applications
Water & Wastewater Treatment
Effluent monitoring, chemical coagulant dosing control, and raw water abstraction.
Chemical Processing
Monitoring aggressive acids, caustics, and solvents requiring corrosion-resistant wetted components.
HVAC & Facility Management
Chilled water loop balancing and energy meter calculation (BTU measurement).
Industrial Utilities
Utility water distribution and non-custody fuel gas monitoring.
Installation & Operating Considerations
Straight Pipe Requirements
Install meters maintaining a minimum of 5 x DN upstream and 3 x DN downstream straight pipe lengths to minimize turbulence caused by elbows, valves, or reducers.
Full Pipe Condition
For electromagnetic and vortex types, the measuring tube must remain completely filled with liquid during operation to avoid measurement errors.
Grounding (Magmeters)
Proper grounding rings or grounding electrodes are mandatory on non-conductive plastic or lined pipes to eliminate stray electrical currents.
Manufacturing & Quality Control
Machining & Welding: Meter bodies are machined on 5-axis CNC centers from forged blanks to maintain wall thickness consistency and eliminate casting porosity. All pressure-retaining welds undergo NDT (Non-Destructive Testing) including dye penetrant inspection.
Calibration Facilities: Every unit is wet-calibrated on gravimetric or volumetric calibration rigs. Calibration rigs maintain an uncertainty of +/- 0.05% and issue individual calibration certificates showing 3-point test logs.
Pressure Testing: Hydrostatic pressure testing is executed at 1.5 x the maximum rated working pressure prior to final assembly.
Customization & OEM
Process Connection Options
Custom flange drillings (EN 1092-1, ANSI B16.5, JIS B2220, Tri-Clamp, or NPT/BSP threaded fittings).
Lining & Electrode Materials
Tailored selection of PFA, ceramic, tantalum, or platinum-rhodium electrodes for extreme chemical or abrasive slurry services.
Private Labeling
Laser-etched custom nameplates, branded firmware boot screens, and tailored technical documentation manuals matching exact client specifications.
Selection Guide
To determine the correct meter configuration for an engineering specification, verify the following parameters before issuing an RFQ:
Fluid Properties
Exact chemical composition, viscosity, and minimum electrical conductivity (if magmeter is selected).
Operational Range
Minimum, normal, and maximum flow rates (m3/h, L/min, or GPM).
Process Conditions
Maximum operating temperature and pressure extremes.
Electrical Environment
Available power supply and required control system interface (HART, Modbus, or basic 4-20mA).
