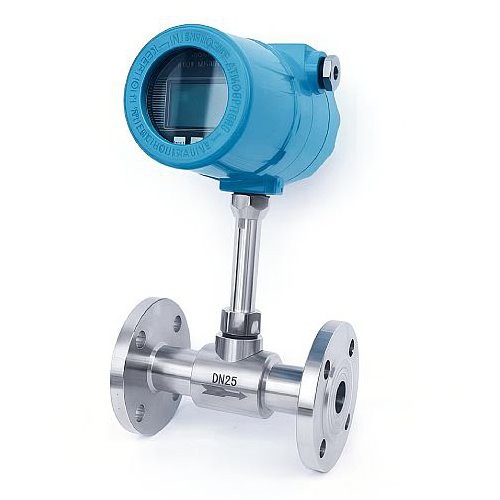

Dalian Yheng Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of thermal gas mass flowmeter in China. Welcome to buy high quality thermal gas mass flowmeter in stock here from our factory. If you have any enquiry about customized service, please feel free to email us.
|
Measuring Medium |
Various gases (Except the acetylene) |
|
Connection |
Insertion, Flange, etc |
|
Pipe Size |
DN15~3000mm |
|
Velocity |
0.1 ~ 100 Nm/s |
|
Accuracy |
±(1.5%RD+0.5%FS) |
|
Temperature |
Ambient temperature: -40~60 ℃, Medium temperature: -40~150 ℃, Higher temperature is optional |
|
Working pressure |
Insertion Sensor: medium pressure≤ 1.6MPa, Flanged Sensor: medium pressure≤ 1.6MPa Special pressure please contact us |
|
Power supply |
24VDC or 220VAC |
|
Output signal |
4-20mA, RS485, relay (Hart is optional) |
|
Responding time |
0.5~1s |
|
Alarm |
2 line Relay, Normally Open state, 3A/30V/DC |
|
Sensor Type |
Standard Insertion, Hot-tapped Insertion and Flanged |
|
Converter Type |
Integrated and Remote |
|
Pipe Material |
Carbon steel, stainless steel, plastic, etc |
|
Protection level |
IP65 |
|
Sensor Housing Material |
Stainless steel (304/316) |
|
Display |
4 lines LCD, Mass flow, Volume flow in standard condition, Flow totalizer, Velocity, etc. |
Features
● True Mass Flow Measurement: Direct reading of gas mass flow or standard volume flow – no need for temperature or pressure compensation.
● Extremely Wide Turndown Ratio: Measures flow rates from 0.1 Nm/s up to 100 Nm/s, ideal for both high-flow processes and gas leak detection.
● No Moving Parts: Sensor contains no moving or pressure-sensing components, ensuring long service life and excellent vibration resistance.
● Vibration-Immune: Measurement accuracy unaffected by mechanical vibration or installation conditions.
● Easy Installation & Maintenance: Optional non-stop production installation and maintenance (special customization required).
● Fully Digital Design: All-digital circuit processing ensures high measurement accuracy and simplified maintenance.
● Industrial Communication: RS-485 interface standard, supporting factory automation and DCS/PLC system integration.
Applications
Suitable for accurate metering of O₂, H₂, N₂, air, LPG, biogas, blast furnace gas in industrial processes, with stable performance under vibration and variable conditions.

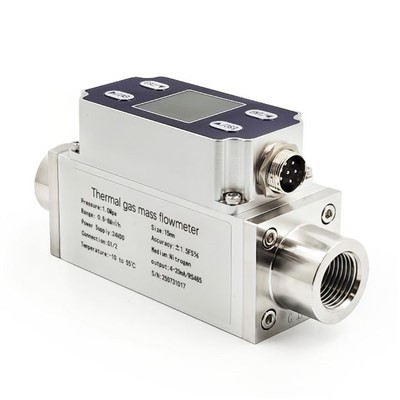

Hot Tags: thermal gas mass flowmeter, China thermal gas mass flowmeter manufacturers, suppliers, factory, Micro Thermal Flow Meter Small Flow Gases, Micro Thermal Gas Flow Meter, thermal flowmeter
