Dalian Yheng Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of stainless steel radar level meter in China. Welcome to buy high quality stainless steel radar level meter in stock here from our factory. If you have any enquiry about customized service, please feel free to email us.
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating Frequency | 80 GHz FMCW millimeter-wave |
| Measuring Range | 0.1 m to 120 m (standard models: 12 m / 35 m / 85 m / 120 m) |
| Measurement Accuracy | ±1 mm |
| Beam Angle | Approx. 3° (pencil beam) |
| Near-End Blind Zone | 0.1 m (100 mm) |

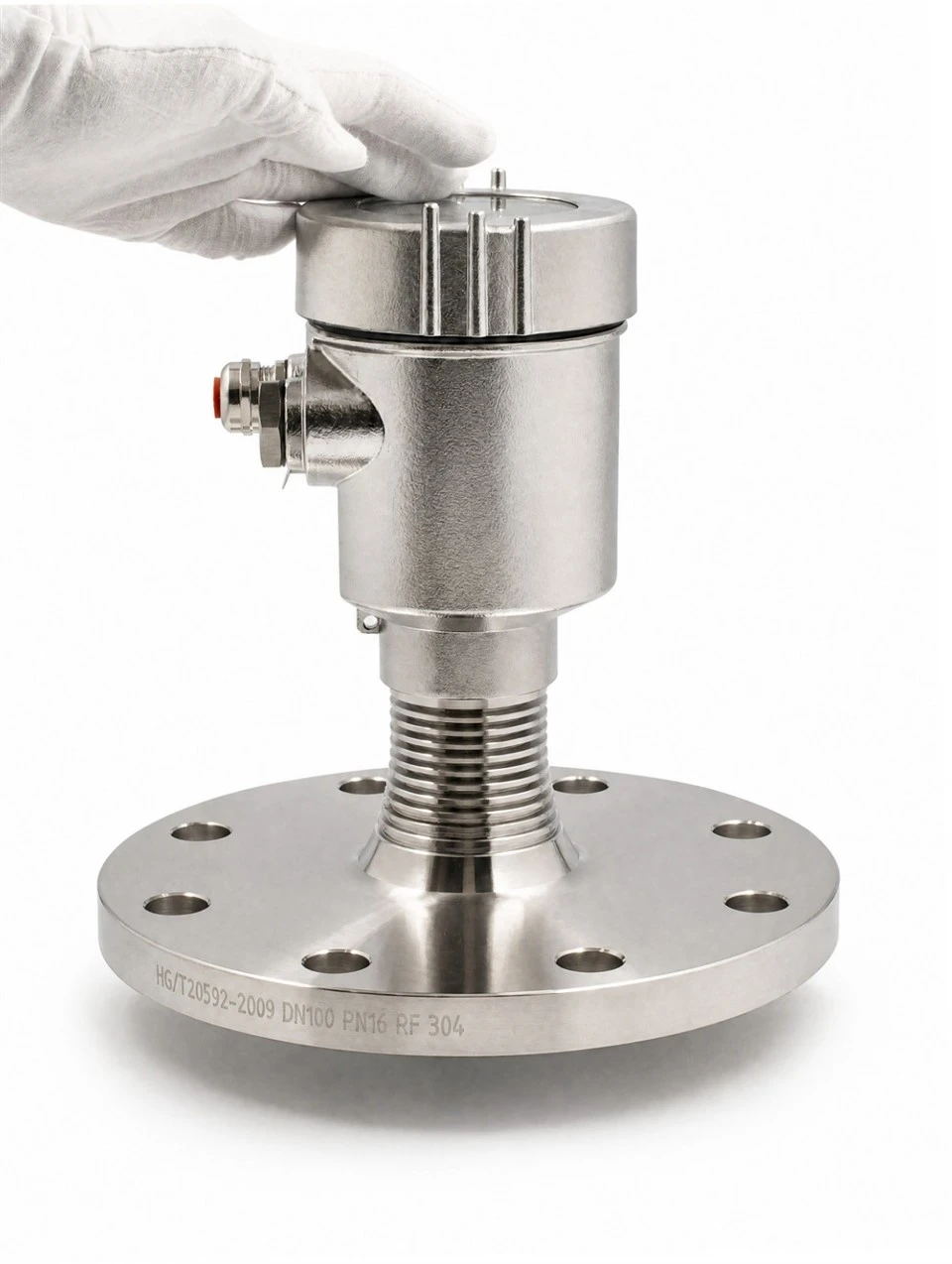

| Process Connection | HG/T 20592-2009 DN100 PN16 RF 304 flange (custom threads optional) |

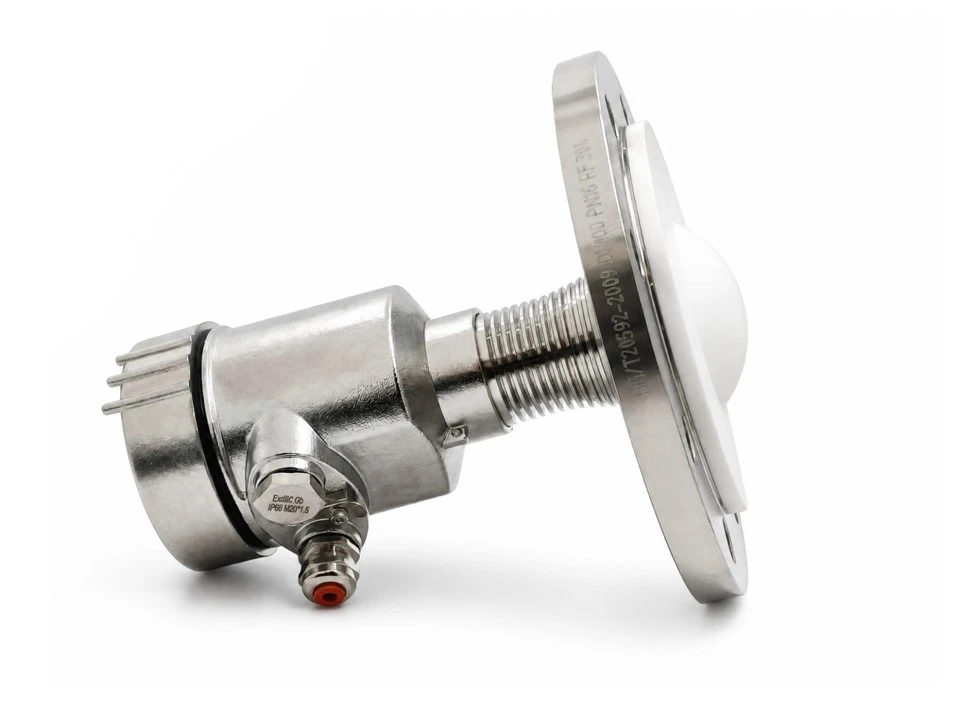

| Antenna Type & Material | Encapsulated PTFE convex lens antenna |
| Enclosure Material | Heavy-duty investment cast 304 stainless steel with cooling fins |
| Process Temperature | -40°C to +100°C (standard); extended options up to +200°C |
| Process Pressure | -0.1 MPa to +1.6 MPa (-1 bar to +16 bar) |
| Seal Material | FKM (Viton) |
| Ingress Protection | IP68 |
| Hazardous Area Approval | Ex db ia IIC T6 Gb / Ex tb IIIC T80°C Db |
| Output Signals | 4–20 mA (HART 7.0) + RS485 (Modbus RTU) |
| Power Supply | 24 V DC (12–24 V DC operating range) / optional 220 V AC |

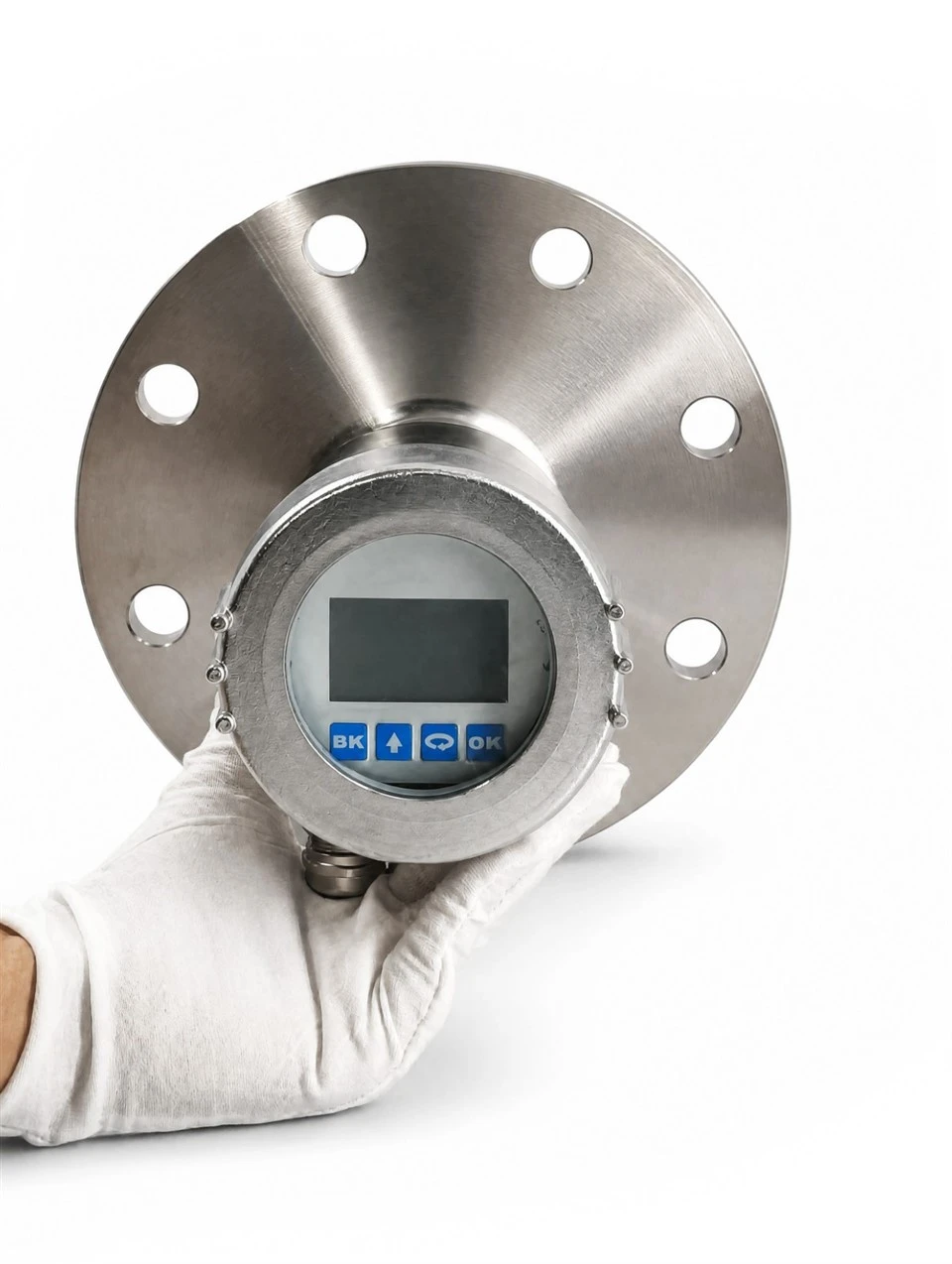

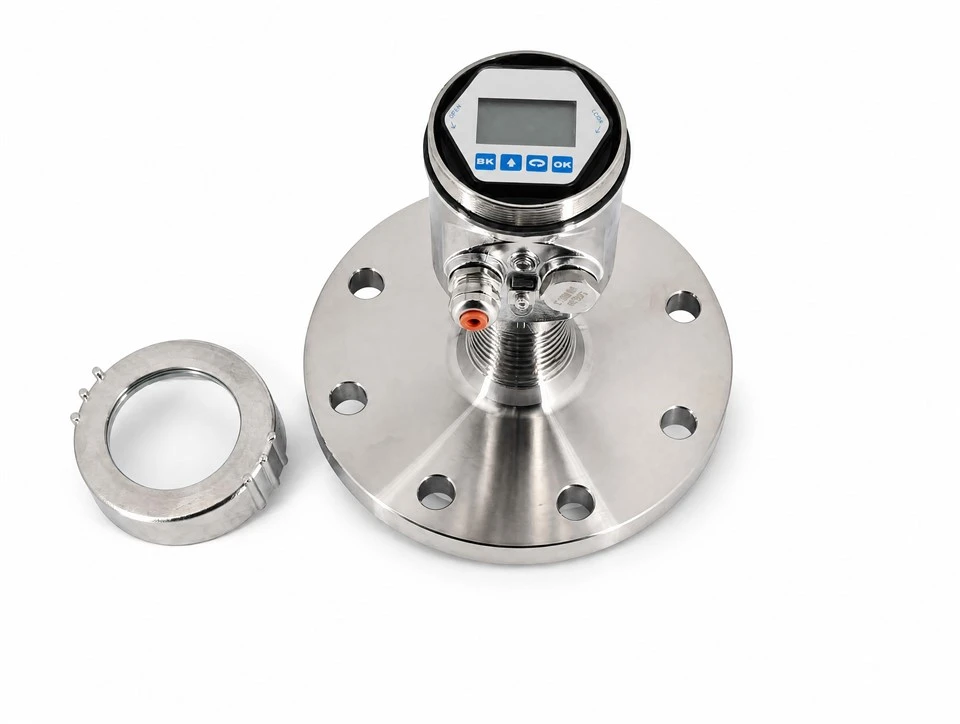

| Display & Keypad | 128×64 dot-matrix backlit LCD + 4 mechanical tactile pushbuttons |
| Cable Entry | M20×1.5 explosion-proof cable gland + external grounding terminal |
Target Applications
- Corrosive Chemical Storage
- Hygienic Food & Pharmaceutical Vessels
- Vessels with Internal Obstructions
- Condensation & High-Vapor Processes
- Municipal Water & Wastewater
