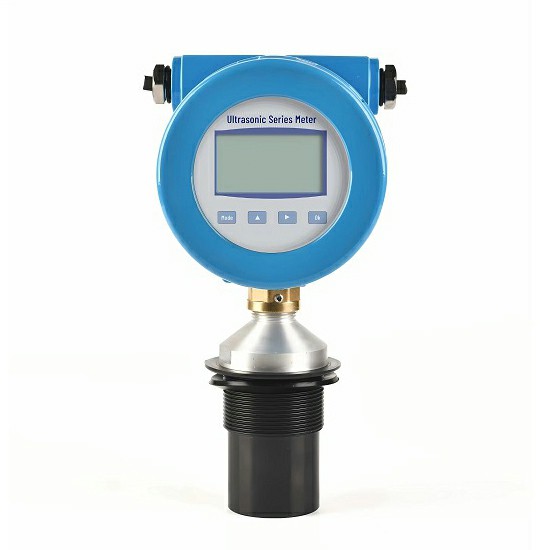

UTG21-BE Explosion-proof Ultrasonic Level Meter

UTG21-BE Ultrasonic Level Transmitter is a professional industrial level measuring instrument designed for continuous, non-contact detection of liquid, paste and granule material level.

● High-precision measurement
● Intelligent on-site usability
● Durable & reliable

Advantages
Supports four-level rate adjustment for accurate average level readings under severe fluctuations.
Chinese/English and meter/inch units are switchable.
With optional corrosion-resistant materials and IP65 protection, it adapts well to −40~90℃ conditions.

Send Inquiry

Dalian Yheng Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of utg21-be explosion-proof ultrasonic level meter in China. Welcome to buy high quality utg21-be explosion-proof ultrasonic level meter in stock here from our factory. If you have any enquiry about customized service, please feel free to email us.

System		Integrated two-wire system
Basic parameters	Measurement range	0～5m, 0～10m, 0～15m, 0～20m
	Block dist.	0.35～0.6m
	Precision	±0.3%FS* (standard conditions *)
	Resolution	±2mm
Input	Supply voltage	DC12～36V / AC 85~264V
	Maximum current	50mA~100mA
	Ripple wave requirement	Less than ±200mV
Output	Simulated current	Load 500Ω
Output	Digital interface	Rs485 / ModBus-RTU
Interface	Process interface	G1 1/2" or G2"
Interface	Electrical interface	PG11
Material	Transmitter	ABS
	Probe	Ordinary waterproof ABS / anti-corrosion ETFE
	Flange	Ordinary waterproof ABS/ anti-corrosionETFE
Environmental condition	Environment temperature	-20℃～+60℃. Liquid crystal display is limited if it is lower than -20℃. If outdoor instrument is exposed to sunlight directly, add ultraviolet-proof protective cover.
Environmental condition	Waterproof grade	IP65
Process condition	Process temperature	-40℃～+90℃, high-temperature probe shall be used in case of over 70℃.
Process condition	Process pressure	0.8～3bar or 0.08～0.3Mbar abs / below 3000 meters altitude
Probe Cable Length		RVVP 4*0.3 / less than 200m

Features

● Four change rates are available, so as to read average liquid level accurately even if the liquid level fluctuates drastically.

● Six display modes are available, to display echo waveform and historical curve.

● Internally integrated temperature sensor provides real-time temperature compensation to sound speed.

● On-site operation is available with liquid crystal display and keyboard.

● 4～20mA current diagnostic function.

● Chinese and English displays are available; meter and inch are available.

● Carry out automatic detection of on-site electrical disturbance and interference suppression.

● All input and output lines have overvoltage and overcurrent protection.

● Provide alarm current output function.

● Non-contact measurement owns a long service life.

Applications

It is an ideal choice for level monitoring in chemical, water treatment, food processing, building materials, and storage and transportation industries, with a long service life and low maintenance cost to meet the diverse level measurement needs of industrial sites.
