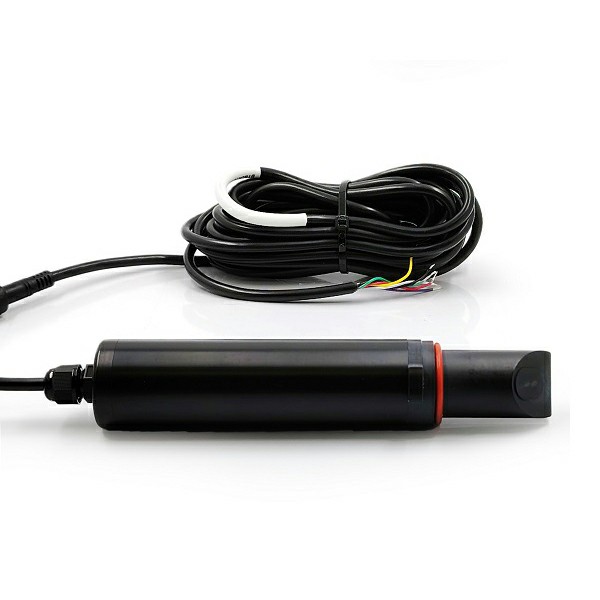

Dalian Yheng Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of digital turbidity sensor in China. Welcome to buy high quality digital turbidity sensor in stock here from our factory. If you have any enquiry about customized service, please feel free to email us.
|
Specification |
Value |
|
Power Supply |
DC 9-28V |
|
Peak Power |
5W |
|
Light Source |
860nm laser |
|
Protection Class |
IP68 |
|
Range |
0 ~ 1000NTU |
|
Resolutions |
0.01NTU |
|
Lower Measurement Limit |
0.05NTU |
|
Zero Drift |
≤ 1.5% |
|
Stability |
≤ 1.5% |
|
Accuracy |
5% or±0.5 NTU (whichever is greater); (based on Formazin primary standard at 25℃) |
|
Repeatability |
≤ 1% |
|
Response Time (T90) |
≤ 120 seconds |
|
Operating Temperature |
-5 ~ 45 ℃ |
|
Calibration Method |
Factory calibrated, use default calibration curve; single point calibration, Formazin two point calibration, 2 to 6 point custom calibration |
|
Withstanding Pressure |
0.6MPa |
|
Inlet Flow |
100 ~ 1000mL/min (500mL/min recommended) |
|
Dimension |
182mm*Φ32 |
|
Housing Material |
ABS and POM plastic |
|
Connector |
RS485 + 4-20mA interface |
Features
● Compact size, convenient for system integration;
● Simple structure, easy to clean and maintain;
● Inclined light window, not easy to adhere to air bubbles;
● Sealed structure, resistant to deep water or high pressure;
● IP68 protection, portable installation.
Applications
Turbidity sensor is widely used for real time turbidity detection in tap water, sewage, surface water, aquaculture and industrial process water.
