Name: China Battery Operated Fixed Ultrasonic Flow Meter Manufacturers Suppliers Factory - Yheng
Brand: Yheng
SKU: 299143390

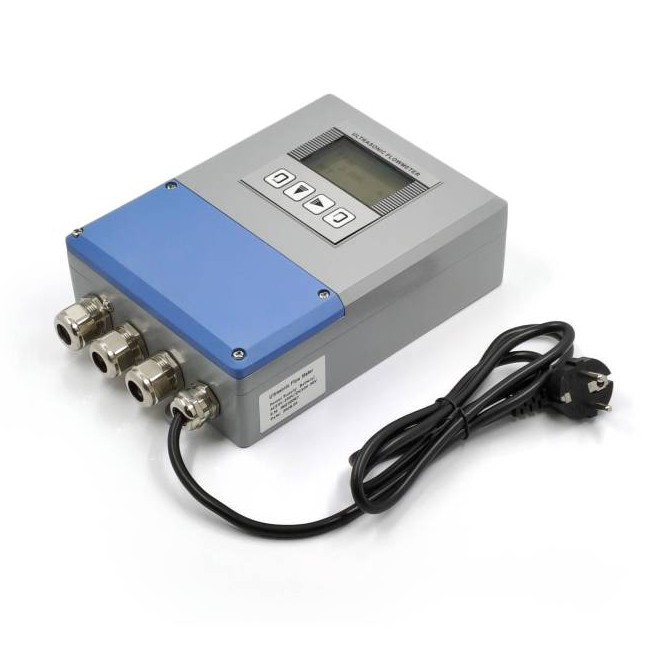

Battery Operated Fixed Ultrasonic Flow Meter

The Ultrasonic Flow Meter is a next-generation flow and heat measurement device utilizing advanced ultrasonic technology. It supports multi-channel configurations (up to 32 channels) and low-power operation, with built-in backup batteries enabling up to 6 years of continuous use. Suitable for liquids with less than 5% particles or bubbles, it delivers precise and stable flow measurement for various industrial applications.

● No power limitations
● Extremely high industrial stability and lifespan
● Accuracy: ±1% (0.5% / 1.0% measurement accuracy)

Advantage
The main advantages of stationary battery-powered ultrasonic flow meters include: no external power supply required (saving on wiring costs, suitable for field/remote areas).

Send Inquiry

Dalian Yheng Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of battery operated fixed ultrasonic flow meter in China. Welcome to buy high quality battery operated fixed ultrasonic flow meter in stock here from our factory. If you have any enquiry about customized service, please feel free to email us.

Category	Specifications / Details
Type	Ultrasonic Flow Meter
Accuracy	±1% (0.5% / 1.0% measurement accuracy)
Customization Support	OEM (Original Equipment Manufacturer) available
Applicable Medium	Most single-phase liquids; containing less than 5% particles or bubbles
Wetted Material	Stainless Steel
Compatible Pipe Materials	Stainless Steel, Carbon Steel, Polyvinyl Chloride (PVC), PPR, Cement
Ambient Temperature Range	-40°C ~ +60°C
Measured Fluid Temperature Range	-20°C ~ +150°C
Explosion-Proof Grade	ExidIIBT4
Flow Output	Self-powered 4-20mA analog output
Precise Flow Velocity Range	0.1 ~ 7.0 m/s
Display	128*64 dot-matrix LCD screen

Features

● High accuracy with ±1% measurement and 0.01m/s sensitivity

● Dual-channel redundancy improves stability and adapts to flow field changes

● Fast response time of 0.1 seconds with high-speed DSP processor

● Resists interference from impurities like rust and scale

● Supports RS485 Modbus communication and 4-20mA output

● Low-power design with battery life over 6 years

● IP65 protection, suitable for harsh environments

Applications

Industrial liquid flow measurement (water, oils, chemicals), HVAC systems for heat metering, Water treatment and distribution networks, Open channel flow monitoring (with level gauge), High-viscosity fluid and ultrapure water measurement, Remote monitoring in pipeline systems.
