Name: China Flanged-end Ultrasonic Flow Meter Manufacturers Suppliers Factory - Customized Service - Yheng
Brand: Yheng
SKU: 299143008

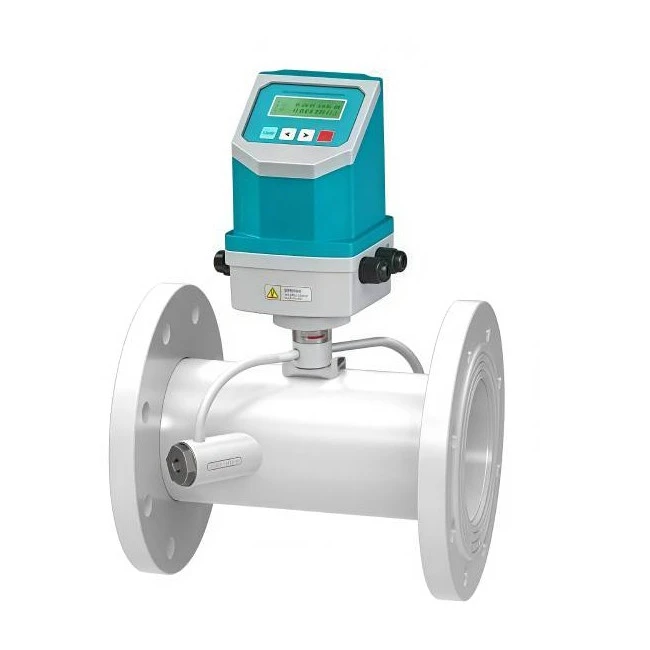

The Ultrasonic Flow Meter is flow meter utilizes advanced transit-time technology to deliver precise and reliable measurement for a wide range of pipe diameters, from DN15 to DN6000. Designed for durability, the entire unit achieves an IP68 protection rating, ensuring stable operation in the harshest environments, including full submersion.

● Accuracy : ±0.5% for both π-Type and Standard Type
● Power Supply: AC 85V~265V/ DC 18V~36V
● Output: 4-20mA/RS485/Pulse/Hart

Advantages
The meter features strong anti-interference, reliable operation, multiple expandable interfaces, and no moving parts, ensuring long-term high-precision measurement and adaptability to diverse water quality including media with gravel and weeds.

Send Inquiry

Dalian Yheng Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of flanged-end ultrasonic flow meter in China. Welcome to buy high quality flanged-end ultrasonic flow meter in stock here from our factory. If you have any enquiry about customized service, please feel free to email us.

Parameters	Specifications
Measuring Range	DN40~DN1000mm
Accuracy	±0.5% for both π-Type and Standard Type
Temperature Range	-30℃~160℃ (measured fluid); -20℃~60℃ (converter)
Pressure Range	0~2.5Mpa (optional)
Flange Standard	GB/T 9119-2000 (DN15~300); JB/T 81-94 (DN350~1000)
Fluid Velocity	0~7m/s
Turbidity Tolerance	≤10000ppm (little bubble allowed)
Interfaces	RS485 (MODBUS), 4-20mA analog I/O, OCT pulse, Relay signal
Power Supply	DC8~36V; AC85~264V (optional)
Power Consumption	1.5W

Features

● High Precision Measurement

● Full IP68 Protection

● No Moving Parts

● Wide Temperature & Pressure Range

● Versatile Connectivity

● Heat Measurement Ready

Applications

The Flanged-end Ultrasonic Flow Meter is engineered to handle diverse water qualities and industrial conditions, making it suitable for:Water & Wastewater Treatment: Accurate measurement of raw water, potable water, and sewage, even with high turbidity or suspended solids. HVAC & Energy Management: Used as a heat meter for monitoring energy consumption in district heating, cooling systems, and building automation.
