Dalian Yheng Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of portable ultrasonic flow meter in China. Welcome to buy high quality portable ultrasonic flow meter in stock here from our factory. If you have any enquiry about customized service, please feel free to email us.
Technical Specifications
| Item | Specification Details |
|---|---|
| Operating Principle | Ultrasonic time‑difference principle |
| Measurement Accuracy | Flow: ±1 % |
| Display Unit | 6×12 Chinese / 6×24 foreign‑character backlit dot‑matrix LCD; multi‑language support for Chinese, English, Italian, French and Spanish |
| Data Interface | Type‑C port for charging and PC communication |
| Data Storage Capacity | Up to 65 000 measurement records |
| Compatible Pipe Materials | Carbon steel, stainless steel, cast iron, copper, PVC, aluminum, FRP and other dense piping materials |
| Pipe Diameter Scope | DN15‑DN6000 mm |
| Straight‑pipe Segment Requirements | 10D straight pipe upstream, 5D downstream; keep 30D distance away from pump outlets (D = pipe outer diameter) |
| Measurable Fluids | Water, seawater, industrial wastewater, acid & alkaline solutions, alcohol, beer, various oils and other single‑phase homogeneous liquids that conduct ultrasonic waves |
| Fluid Temperature Range | ‑30 ~ 160 ℃ |
| Velocity Measuring Range | 0 ~ ±10 m/s |
| Ambient Working Temperature | Main unit:‑20~60 ℃; Transducer:‑20~60 ℃ |
| Humidity & Ingress Protection | Main unit: ≤85 %RH; Transducer protection grade: IP68 |
| Power Supply Options | Built‑in 3‑cell Ni‑MH battery: 8‑hour continuous operation3 alkaline batteries: 4‑hour runtime10 000 mAh power bank: up to 40‑hour working timeAC 110‑240 V external power supply for long‑term continuous measurement |
| Power Consumption | 1.1 W |
| Housing Material | Flame‑retardant ABS engineering plastic |
| Main‑Unit Weight | 0.5 kg |

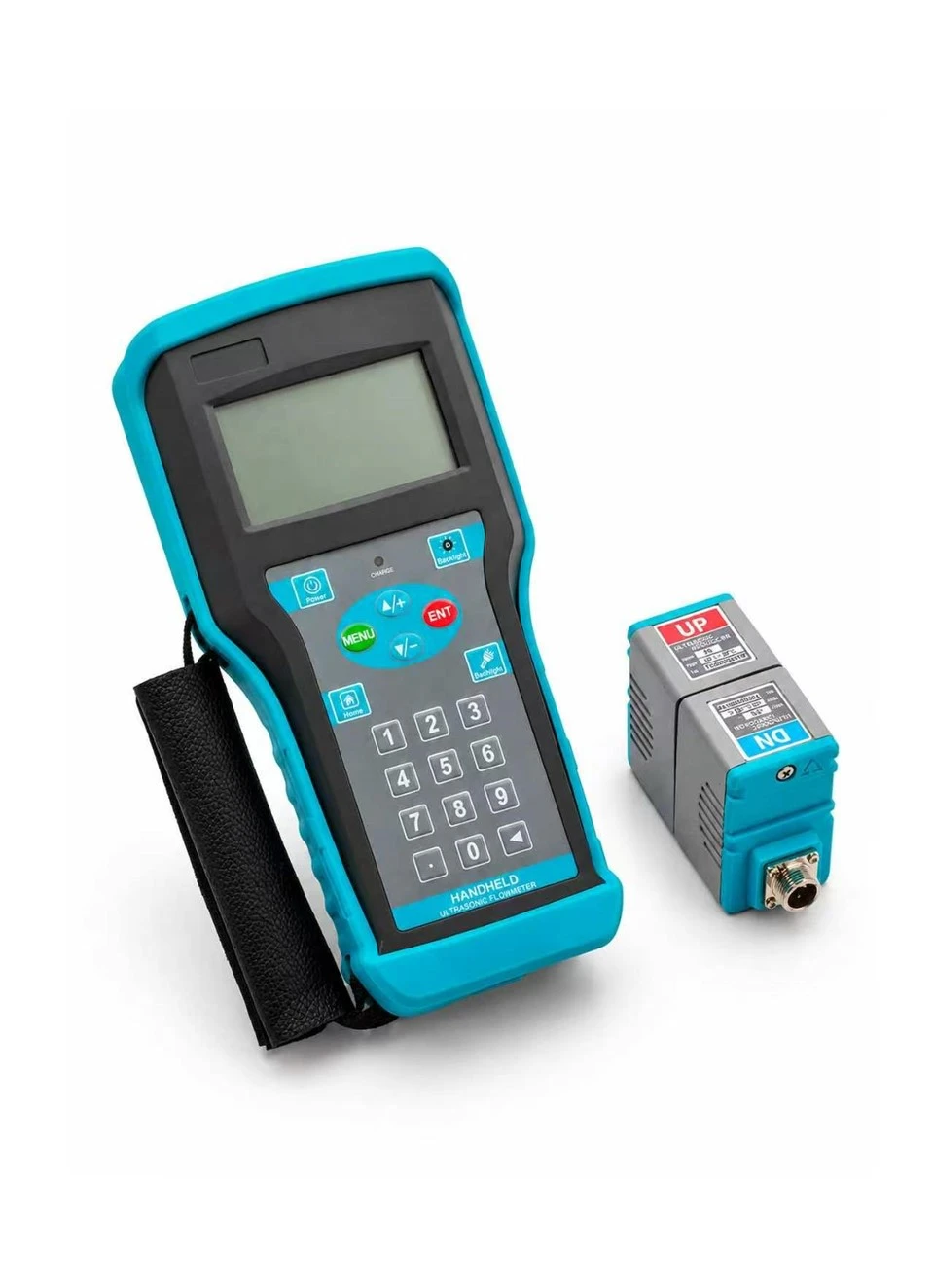

Core Unit Components
- Transducer port: Connection point for flow‑sensor cables
- Multi‑line backlit LCD display: Shows flow parameters and operational status
- Rear‑mounted built‑in Ni‑MH rechargeable battery
- Charging status indicator lamp
- Left‑side and right‑side hand‑grip lugs for comfortable holding
- Physical keys: power switch, home shortcut, navigation buttons, alphanumeric keypad, flashlight toggle
- Type‑C port: Dual‑purpose for battery charging and data communication / output
- Heavy‑duty protective carrying case: Robust build for secure storage and convenient site‑to‑site transport
