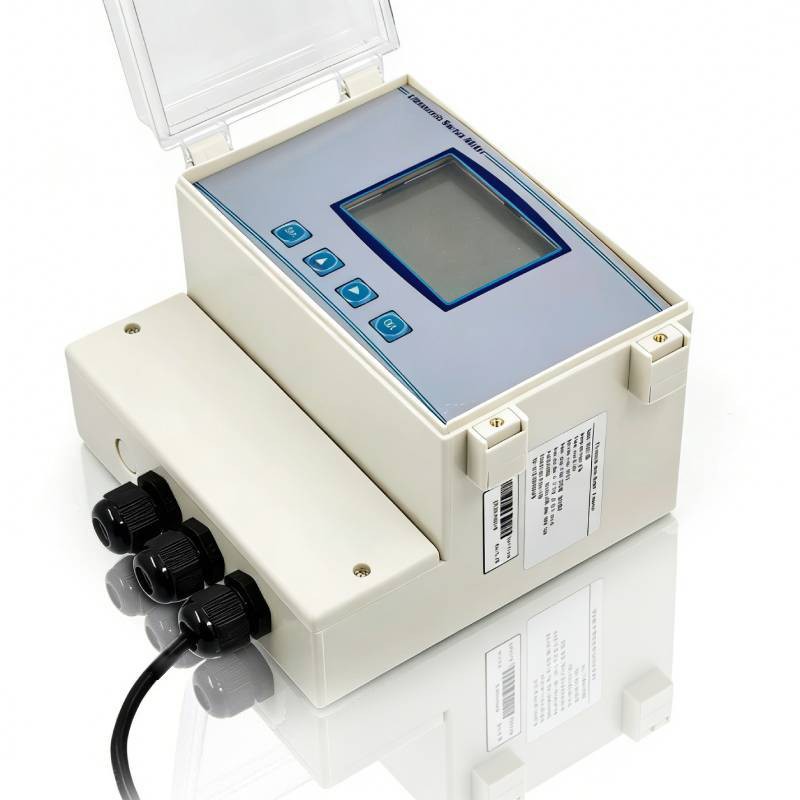

UTG21-DS Ultrasonic Open Channel Flow Meter

The UTG21-DS Ultrasonic Open Channel Flowmeter is a state-of-the-art, non-contact measurement instrument designed for precise monitoring of water flow in open channels. conditions.

● High-Precision Measurement
● Robust & Explosion-Proof Design
● Versatile Output & Communication

Advantage

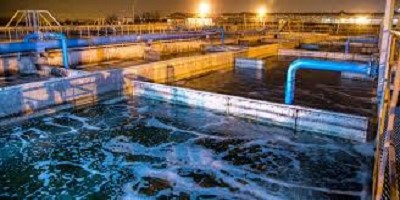

Utilizing patent-protected sonic-intelligent technology, the UTG21-DS offers unparalleled accuracy and stability, making it the ideal choice for industrial wastewater treatment, environmental monitoring, and agricultural irrigation management.

Send Inquiry

Dalian Yheng Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of utg21-ds ultrasonic open channel flow meter in China. Welcome to buy high quality utg21-ds ultrasonic open channel flow meter in stock here from our factory. If you have any enquiry about customized service, please feel free to email us.

Items		Remote
Measuring range	Flow rate	0.1L/s~120000 m³/s
	Level	0.35m~3.000m
Measuring accuracy	Flow rate	Triangular weir 1~5% / Rectangular weir 3~5% / Parshall flume 2~3%
	Level	± 0.3% FS * (standard condition*)
Cumulative flow		4000000000 m³
Dead zone		0.35m
Pressure		Below 3 bar / 2000m below sea level
Display		Instantaneous flow, cumulative flow, level, waveforms and historical curves
Totalization data logger		Any interval lasting the last 8 years
Temperature	Environment	-20 ℃ ~ +60 ℃
	Process	-20 ℃ ~ +90 ℃ (Optional: when the process temperature is higher than +60 ℃ )
Interface	Electrical	Waterproof Connector PG11
	Process	G2 "
Materials	Transmitter	ABS
	Transducer	ABS/ETFE/PTFE
Protection Class		IP65 (Optional: IP68)

Features

● High-Precision Measurement: With a distance resolution of 1mm and a flow precision of 1% to 5%, the UTG21-DS ensures accurate data collection. Its patented sonic-wave intelligent software analyzes echoes dynamically to minimize interference and enhance accuracy up to 0.3%.

● Robust & Explosion-Proof Design: Encased in a die-casting aluminum alloy shell with an IP65 protection grade, the flowmeter is both waterproof and explosion-proof. It is built to withstand harsh environments, operating reliably in temperatures ranging from -20°C to +60°C.

● Versatile Output & Communication: Equipped with a 4~20mA analog output and an RS485 digital interface, the device supports standard Modbus protocols as well as custom ASCII protocols. This allows for seamless integration with SCADA systems, PLCs, and GPRS wireless modules for remote monitoring.

● User-Friendly Interface & Calibration: The large LCD display shows instantaneous and cumulative flow simultaneously. The intuitive keypad allows for easy parameter setting, including reaction velocity, measurement units, and relay outputs for flow alarms.

● Advanced Protection Features: Built-in lightningproof and short-circuit protection on all incoming and outgoing lines safeguard the device against power surges and environmental hazards, reducing the risk of failure and maintenance costs.
