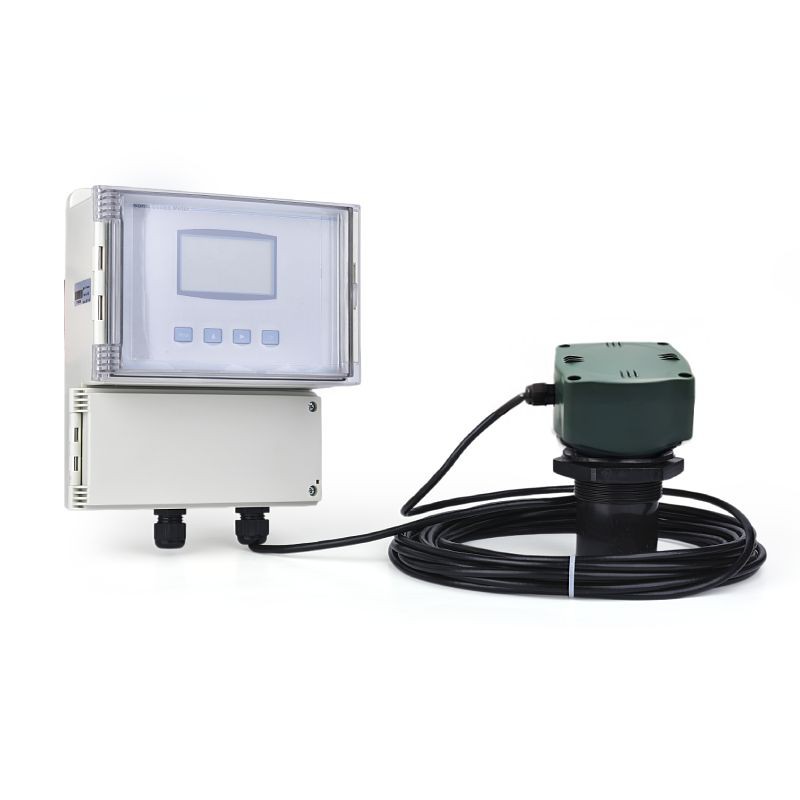

Dalian Yheng Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of utg21-dr ultrasonic open channel flow meter in China. Welcome to buy high quality utg21-dr ultrasonic open channel flow meter in stock here from our factory. If you have any enquiry about customized service, please feel free to email us.
|
Parameter Category |
Specific Parameter |
Specification Value |
Remarks |
|
Power Supply |
DC Supply |
18~36V/100mA |
/ |
|
AC Supply |
100~240V/3W |
/ |
|
|
Output Interface |
Analog Output |
4~20mA |
/ |
|
Digital Communication |
RS485/ModBUS |
/ |
|
|
Pulse Output |
6~100ms |
/ |
|
|
Relay Output |
Up to 2 channels |
Optional |
|
|
Hart Output |
- |
Optional |
|
|
Measuring Range |
Flow Rate |
0.1L/s ~ 120000 m³/s |
/ |
|
Level |
0.35m ~ 3.000m |
/ |
|
|
Cumulative Flow |
4000000000 m³ |
/ |
|
|
Measuring Accuracy |
Flow Rate - Triangular weir |
1~5% |
/ |
|
Flow Rate - Rectangular weir |
3~5% |
/ |
|
|
Flow Rate - Parshall flume |
2~3% |
/ |
|
|
Level |
±0.3% FS |
Standard condition |
|
|
Basic Performance |
Dead Zone |
0.35m |
/ |
|
Pressure Resistance |
Below 3 bar |
2000m below sea level |
|
|
Data Storage Time |
Up to 8 years |
Any interval |
|
|
Display Function |
Display Content |
Instantaneous flow, cumulative flow, level, waveforms, historical curves |
Local LCD display |
|
Temperature Range |
Environment Temperature |
-20℃ ~ +90℃ |
/ |
|
Process Temperature |
-20℃ ~ +60℃ |
Optional for ＞60℃ |
|
|
Interface Specification |
Electrical Interface |
Waterproof Connector PG11 |
/ |
|
Process Interface |
G2" |
/ |
|
|
Material |
Transmitter |
ABS/ETFE/PTFE |
/ |
|
Transducer |
ABS |
/ |
|
|
Protection Grade |
Standard Grade |
IP65 |
/ |
|
Optional Grade |
IP68 |
/ |
|
|
Core Features |
Measurement Type |
Instantaneous flow, flow volume, liquid level, waveform |
Non-contact |
|
Other Functions |
Automatic error correction, local keyboard operation, date & time display |
Long service life |
Features
● Non-Contact, Maintenance-Free Measurement: Utilizes advanced ultrasonic technology to measure flow from above the liquid surface. This prevents sensor fouling, corrosion, or damage from debris, ensuring a long service life with minimal maintenance.

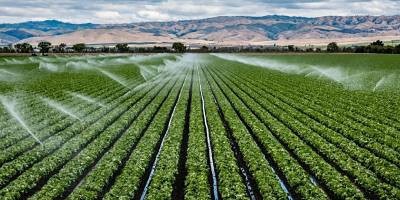

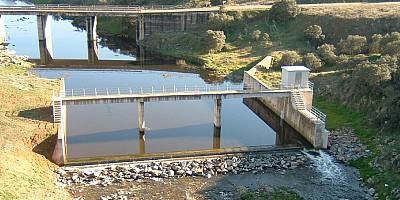

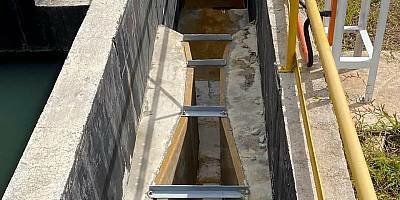

● Wide Application Range: Specifically designed for use with standard structures like Parshall flumes and weirs, and suitable for other free-flow conditions. Perfect for measuring effluent discharge, irrigation flow, water capture, and drainage.
● Comprehensive Data Output & Communication: Offers flexible connectivity with 4-20mA analog output and RS485/ModBUS communication, enabling seamless integration into SCADA systems, PLCs, and central monitoring platforms.
● Extended Data Storage & Local Display: Features a built-in data logger with a storage capacity of up to eight years, securing valuable historical data. The clear local LCD display with keyboard provides real-time viewing of instantaneous flow rate, total flow volume, liquid level, waveform, current date, and time.
● Superior Accuracy & Intelligence: Equipped with an automatic error correction function to compensate for environmental changes, ensuring consistent and reliable measurements under varying conditions.

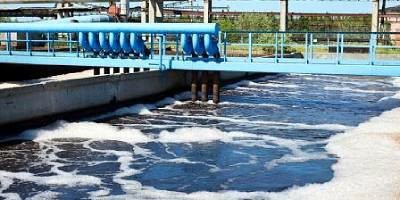

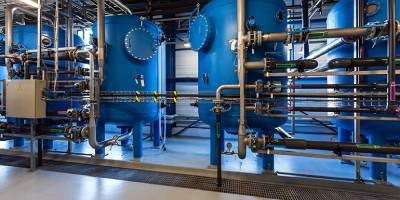

Applications
Serves industrial & environmental flow measurement needs, supports process control, resource management and regulatory compliance with stable, intelligent detection.
