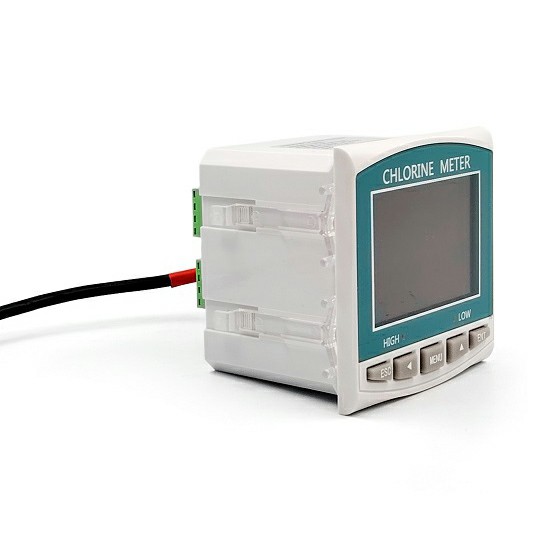

Dalian Yheng Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of online residual chlorine meter in China. Welcome to buy high quality online residual chlorine meter in stock here from our factory. If you have any enquiry about customized service, please feel free to email us.
|
Measuring Range |
0～20.00mg/L,resolution 0.01mg/L |
|
Measuring Accuracy |
±2% |
|
Temp. Measuring Range |
0～99.9℃;Graduation value: 0.1℃;optional |
|
Temp. Measuring Accuracy |
±0.5℃;optional |
|
Automatic Temp. Compensation Range |
0～99.9℃,25℃ as the benchmark; optional |
|
Sample Flow Rate |
200 to 250 mL/min |
|
Minimum Detection Limit |
0.01mg/L |
|
Current Isolation Output |
4～20mA |
|
Output Current Error |
≤±1%FS |
|
High And Low Alarm Relay |
AC220V,3A |
|
Display Screen |
3.5-inch HD IPS color LCD screen, resolution 480*320 |
|
Data Storage |
one year of data (saved every minute) |
|
RS485 Communication Interface |
Modbus RTU protocol |
|
Power Supply |
AC220V, 50-60Hz DC24V (optional) DC12V (optional) |
|
Protection Level |
IP65 |
|
Dimensions |
98(L)×98(W)×110(H)mm |
|
Opening Size |
92×92 mm |
|
Instrument Weight |
Transmitter：0.8kg |
|
Working Condition |
Ambient temperature: -20～60℃; Relative humidity: <85% |
|
Electrode Cable |
5m standard; Could equipped with three-composite or two-composite electrodes |
Features
● High intelligence: Adopting high-precision AD conversion and single-chip micro-processing technology, which complete various functions such as residual chlorine value measurement or ozone measurement.
● Time display: Built-in clock chip can display the current time.
● Data storage: The built-in storage chip which could save historical data for 1 year, and the data could be exported through the mobile phone APP Bluetooth (optional function).
● Flushing relay: The instrument is equipped with a flushing relay function, and the electrode can be cleaned regularly by installing a solenoid valve.
● High and low alarm function: The instrument has a built-in buzzer and high and low alarm lights, which can sound and light alarm at the same time when the requirements are met.
● 4-20mA current: The current value can be set arbitrarily and set in reverse, which is easy to control.
● Interval control function: The instrument has an interval relay control function within any range, which can be used for example, interval compliance function, etc.
● Random numerical value function: The meter can displaying random numerical values within any range, which can meet the numerical display function under specific requirements (for specific use, please contact us for details).
● Strong anti-interference ability: It adopts high-resistance operational amplifier with impedance up to 1012 Ω, the current output adopts photoelectric coupling isolation technology, which has strong anti-interference ability and can achieve remote transmission. It has good electromagnetic compatibility.
● RS485 communication interface: Modbus RTU communication protocol can be easily connected to the computer for monitoring and communication. (Optional function)
● Industrial control watchdog: Ensure that the instrument will not crash.
Applications
Online Residual Chlorine Meter can be widely used in the continuous monitoring of residual chlorine of various water qualities in industries such as power, water plants, hospitals, etc.
