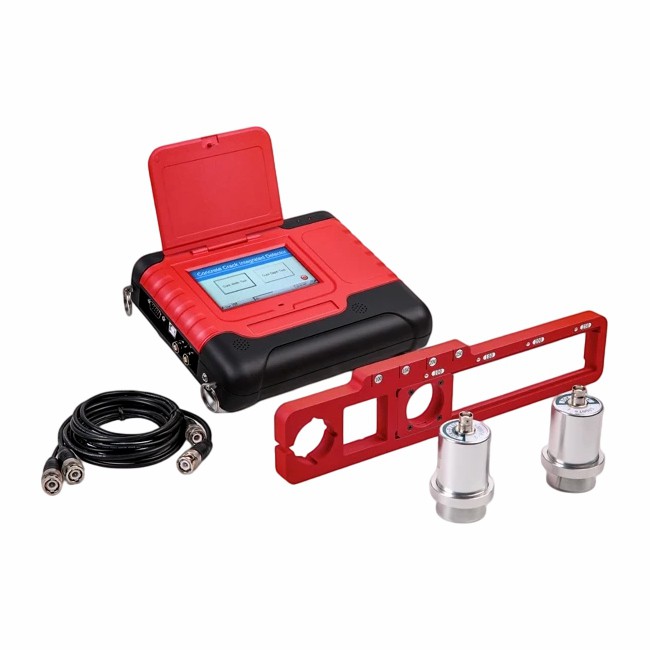

Dalian Yheng Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of crack width and depth detector in China. Welcome to buy high quality crack width and depth detector in stock here from our factory. If you have any enquiry about customized service, please feel free to email us.
|
Crack Width Test Range |
Standard probe 0.01mm ~ 6.5mm; High grade probe 0.005mm ~ 3.5mm |
|
Crack Width Accuracy |
Standard probe ≤±0.02mm; High grade probe ≤±0.01mm |
|
Crack Depth Test Range |
10mm ~ 500mm |
|
Crack Depth Accuracy |
≤±5% |
|
Hardware & System |
Embedded ARM9 platform, WinCe5.0 OS, True Color TFT Touch Screen |
|
Power Supply |
Rechargeable Lithium Battery, continuous working time ≥28 Hours |
|
Working Environment |
Temperature -10℃ ~ +50℃; Humidity ≤90%RH |
|
Data Storage |
4GB SD Card, stores over 200,000 test documents |
|
Testing Probes |
Color amplification probe (width), ultrasonic probe (depth) |
|
Testing Probes |
Color amplification probe (width), ultrasonic probe (depth) |
Features
● Integrated dual-function testing: Realizes one-device measurement of both concrete crack width and depth, eliminating the need for multiple instruments
● High-precision probe matching: Equipped with standard and high-grade color amplification probes for crack width, plus ultrasonic probes for depth, adapting to different testing requirements
● Intelligent recognition & calculation: Automatically identifies crack images, calculates width and depth values in real time, and supports manual/intelligent/scale testing methods for width
● Multiple depth testing modes: Offers non cross-crack, cross-crack and simplified test modes for crack depth, flexible for various on-site concrete structure conditions
● Massive data storage: 4GB SD card supports storing over 200,000 test documents, preserving crack images and depth data for long-term traceability
● Professional post-processing software: Enables data transmission, image viewing, file editing, and report printing, supporting both single and multi-image display for crack analysis
● User-friendly operation: Adopts touch screen and keyboard dual control, with WinCE operating system for easy operation; auto-generates test numbers for efficient on-site work
● Rugged on-site design: Low power consumption with long battery life, wide working temperature and humidity range, suitable for harsh construction site environments
● Precise probe positioning: Ultrasonic transducer holder with adjustable and accurate testing point spacing, no on-site marking required to improve testing efficiency
Applications
Concrete crack width detectors are widely used for testing concrete structures such as bridges, roads, tunnels, high-rise buildings, dams, airports, and industrial plants.
