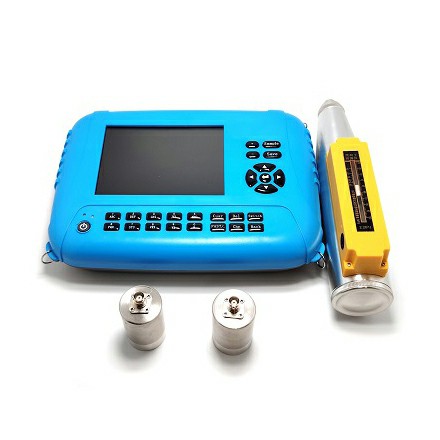

Ultrasonic Velocity Pluse Tester

This nonmetal ultrasonic detector is a professional testing device for nonmetal material detection, integrating multiple testing functions in one.

● Multi-functional Detection & Dual-channel Efficiency
● High-precision Sampling & Visualized Testing
● Intelligent Analysis & Convenient Data Management

Advantages
It features intuitive operation and accurate data acquisition, providing reliable technical support for engineering quality detection and material performance evaluation.

Send Inquiry

Dalian Yheng Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of ultrasonic velocity pluse tester in China. Welcome to buy high quality ultrasonic velocity pluse tester in stock here from our factory. If you have any enquiry about customized service, please feel free to email us.

Emission Voltage	65V, 125V, 250V, 500V, 1000V
Sampling Period	8 grades (0.05us, 0.1us, 0.2us, 0.4us, 0.8us, 1.6us, 3.2us, 6.4us)
Acoustic Speed Range	0～6km/s
Testing Channels	Single channel (1/2), dual channel (1&2)
Data Input	Digital keyboard (0~9) and character input (A~Z)
Zero Acoustic Time Calibration	Manual calibration, eliminating system testing error
Data Transmission	USB interface, supporting U disk data export
Power Prompt	Multi-color light prompt for power voltage and charging status

Features

● Integrated multi-functional testing, covering pile integrity, concrete strength, defect, crevice and single hole integrality detection

● Dual-channel testing mode available, realizing efficient and simultaneous data collection of multiple detection points

● Automatic and manual judgment dual mode for waveform analysis, ensuring accurate identification of testing signals

● Real-time display of acoustic speed curve and data list, visualizing the whole testing process and results

● Support fast sampling function, adapting to continuous testing needs of fixed-distance detection scenarios

● Data storage and U disk transmission, facilitating subsequent data processing and analysis

● Independent parameter setting for different testing items, flexible to match various engineering detection requirements

Applications

This equipment is widely used for testing the integrity of building foundation piles, detecting the strength and defects/cracks in concrete structures, and assessing the structural quality of civil engineering projects such as municipal bridges, roads, and high-rise buildings.
