Dalian Yheng Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of digital concrete rebound hammer in China. Welcome to buy high quality digital concrete rebound hammer in stock here from our factory. If you have any enquiry about customized service, please feel free to email us.
Digital Parts
|
Index |
Specification |
|
Display |
2.0inch (220×176 pixels) |
|
Language |
English Version |
|
Output Mode |
Cable (WIFI, Bluetooth for updated version) |
|
Storage Capacity |
2000 components, 640 thousand data |
|
Power Supply |
3.7V Lithium battery, 1050 mA |
|
Port |
USB (Bluetooth, WIFI for updated version) |
|
Collection Mode |
Automatic display and record data |
|
Size |
150×62×39 mm |
|
Weight |
0.1kg (include battery) |
|
Auto Shutdown |
Supported (5/10/15/30/60/90min optional) |
Schmidt Hammer Parts
|
Index |
Specification |
|
Standard Impact Energy |
2.207J |
|
Rigidity of Tension Spring |
7.85N/m |
|
Digital Display Error Range |
≤±1 |
|
Average Rebound Value on Steel Anvil |
80±2 |
|
Testing Angles |
9 modes (Up90°/60°/45°/30°, Level 0°, Down90°/60°/45°/30°) |
|
Testing Surfaces |
3 types (Surface, Side, Bottom) |
Features
● Intelligent Data Management: Automatically records and calculates rebound values, carbonation depth and component strength, with a large storage capacity for 2000 components and 640,000 pieces of data, supporting real-time display of test results.
● Flexible Operation & Configuration: 9 testing angle modes, 3 concrete surface testing options, and customizable component parameters; one-key operation for data cancellation, new component creation and menu switching, with voice prompt function optional.
● High Precision & Calibratable: Standard impact energy of 2.207J, digital display error ≤±1, and steel anvil calibration function (average rebound value 80±2) to ensure long-term testing accuracy.
● Convenient Data Transmission & Power Supply: Equipped with USB port, and updated versions support WIFI and Bluetooth; 3.7V lithium battery power supply with automatic shutdown function to save power, and charging status real-time indication via light.
● Portable Design: Compact size (150×62×39mm) and light weight (0.1kg including battery), easy to carry for on-site field testing.
Applications

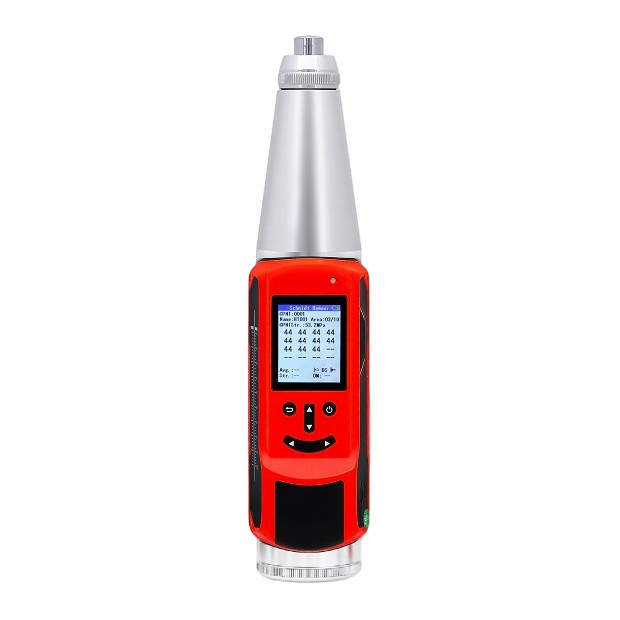

TEM91/TEM912 Digital Test Hammer is a professional non-destructive testing instrument for concrete strength, widely used in various engineering fields:
