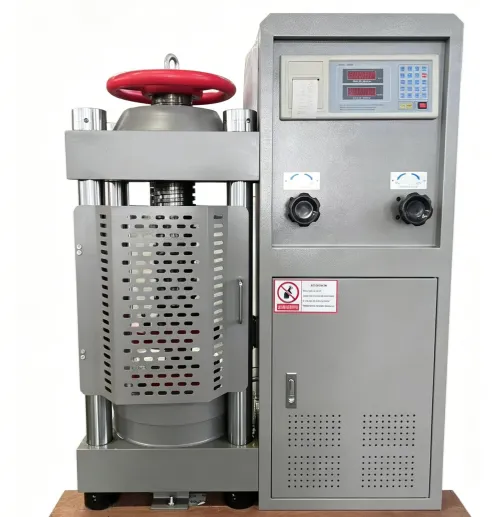

Dalian Yheng Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of electro-hydraulic pressure testing machine in China. Welcome to buy high quality electro-hydraulic pressure testing machine in stock here from our factory. If you have any enquiry about customized service, please feel free to email us.
Features:
- Adopts high-precision digital servo valves with closed-loop force control to ensure stableloading and high test accuracy.
- Fully meets the test requirements for cement, concrete and other materials in accordancewith GB, ISO and ASTM standards.
- Features reliable performance and long service life, especially suitable for long-termcontinuous testing environments.
| Model | DYE-2000 | DYE-2000S |
| Maximum load | 2000KN | |
| Rated operating voltage | Control system ~220V±10% | |
| Main unit voltage | 380V±10% | |
| Indicated weight relative error | ≤士1% | |
| Measurement accuracy range | 4~100%FS | |
| Load constant rate control range | 4~100%FS/min | |
| Instrument fuse | 1A | |
| Maximum distance between pressure plates | 320 | |
| Upper and lower pressure plate specifications | Ø240 | 220*250 |
| Piston diameter x maximum stroke | 250x50 | |
| Column spacing | 280mm | |
| Motor power | 0.75KW | |
| Input voltage | 380V | |
| Dimensions | 900 *350 *1200mm | 1000*400*1400mm |
| Net weight | 650 kg | |
