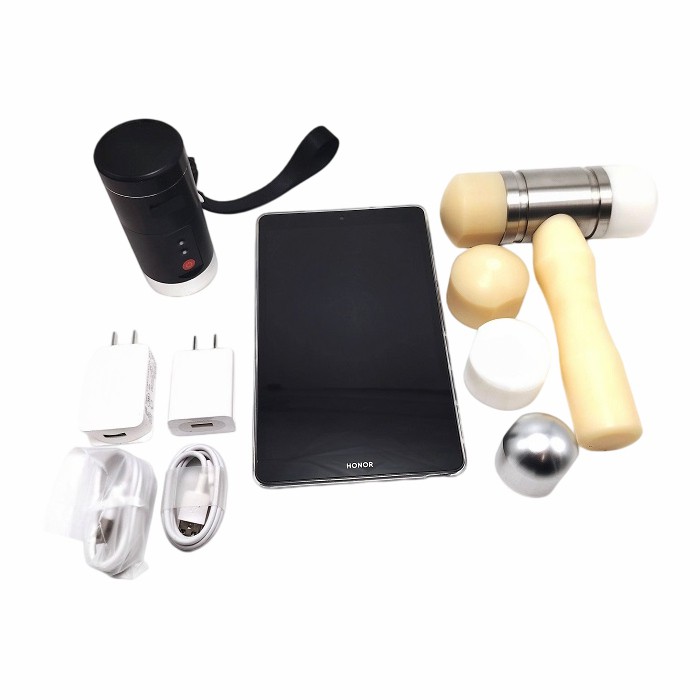

Dalian Yheng Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of wireless pile dynamic detector in China. Welcome to buy high quality wireless pile dynamic detector in stock here from our factory. If you have any enquiry about customized service, please feel free to email us.
|
Technical Index |
Specifications |
|
Dynamic range |
≥180 dB |
|
Amplifier frequency band |
1~10k Hz |
|
A/D resolution |
24 bit A/D |
|
Sampling time intervals |
6.4us~1638.4us |
|
Maximum length of sampling |
≥2048 |
|
Amplitude nonlinear degree |
≤10% |
|
Error of time indication |
<1% |
|
Gain error |
≤1 dB |
|
Fixed point magnification |
1, 2, 4, 8, 16, 32,64 |
|
Acceleration transducer sensitivity |
≥100 mV/g |
|
Acceleration transducer frequency range |
0.5~9000 Hz |
|
Continuous operating hours |
>5 hours |
|
Power-supply mode |
Built-in rechargeable lithium battery (7.4Wh) |
|
Total weight |
About 0.34 kg |
|
Total volume |
φ5×120 mm |
Features
● 24 bit A/D sampling with wide dynamic range and low-noise amplifier system for stable signals and easy identification of pile defects and pile bottom
● Real-time on-site waveform processing (smoothing, differential, filtering, exponent and linear amplification) for immediate data analysis
● Advanced wavelet processing technology that exceeds international standards for accurate signal interpretation
● Multi-signal average superposition to eliminate noise, with the option to reject poor-quality signals at any time
● Clear project-pile file management structure for convenient access, editing and deletion of test data
Applications
Widely used in geotechnical engineering and construction quality testing, applicable for integrity detection of various concrete piles including bored filling piles, precast concrete piles, prestressed pipe piles.
