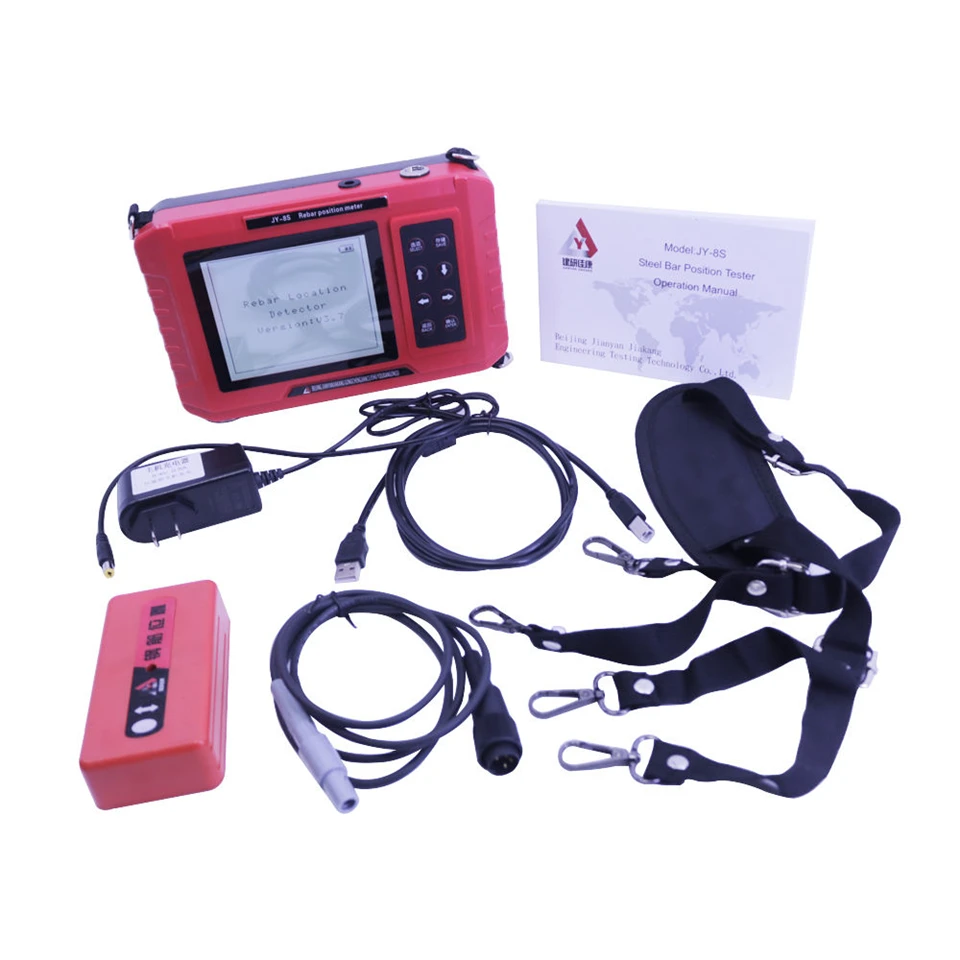

Dalian Yheng Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of jy-8s+ grid scanning concrete detector in China. Welcome to buy high quality jy-8s+ grid scanning concrete detector in stock here from our factory. If you have any enquiry about customized service, please feel free to email us.
Technical Specifications
| Diameter range | Φ6mm~Φ50mm | ||
| Thickness of protection layer | First Nominal Scale Range | Second Nominal Scale Range | |
| 6-90mm | 7-180mm | ||
|
Max. error of displayed value (protection layer thickness) |
±1 | 6~59 | 1~136 |
| ±2 | 60~69 | 80~119 | |
| ±3 | 70~90 | 120~180 | |
| Data storage capacity | 131000 pieces of measurement data | ||
| Power supply | 6 pieces of No.5 LR6 (Alkali) batteries, it can provide power continuously | ||
Functions
- Detects the location and location of reinforcing bars in concrete structures.
- Simultaneously estimates the diameter of the reinforcing bars and the thickness of the concrete cover.
- Detects the thickness of the concrete cover for reinforcing bars (given diameter).
- Detects the thickness of the concrete cover for reinforcing bars below the measuring surface and displays the grid.
- Detects the thickness of the concrete cover for reinforcing bars below a specific measuring line and displays the cross-sectional reinforcing bars.
- Probe self-calibration function.
- Data storage and viewing function.
- Data transmission function.
