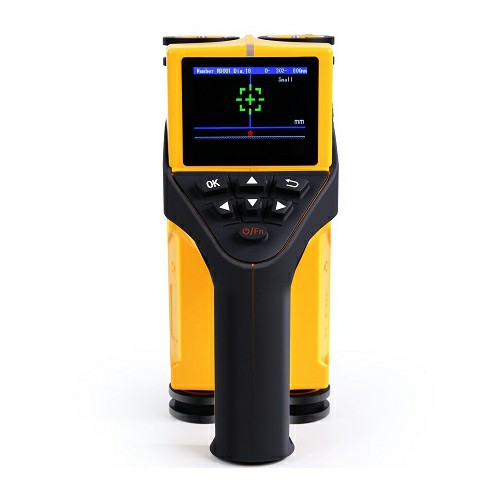

Dalian Yheng Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of rebar reinforcement cover detector in China. Welcome to buy high quality rebar reinforcement cover detector in stock here from our factory. If you have any enquiry about customized service, please feel free to email us.
|
Protective Layer Thickness Range |
Small range 1~80mm; Large range 5~185mm (adapts to different rebar diameters) |
|
Rebar Diameter Detection Range |
φ6~φ50 (matching corresponding protective layer thickness ranges) |
|
Measurement Accuracy |
±1mm (1~59mm for small range; 5~59mm for large range) ±2mm (60~80mm for small range; 60~79mm for large range) ±3mm (80~99mm for large range) ±4mm (100~185mm for large range) |
|
Display |
2.8-inch color LCD, 320×240 pixels |
|
Data Storage |
200,000 rebar measuring point data |
|
Power Supply |
Built-in high-capacity lithium battery, ≥16h standby time |
|
Interface |
Micro USB (data transmission + charging) |
|
Operation |
Silicone keypad with multi-function keys |
|
Dimensions |
219×92×106mm |
|
Weight |
0.60kg (battery included) |
|
Working Environment |
Temperature -10℃~+42℃; Relative humidity <90% RH (no strong electromagnetic interference) |
|
Storage Environment |
Temperature -20℃~+50℃; Relative humidity <90% RH |
Features
● Multi-mode Detection: Supports thickness, waveform, grid and profile detection, meeting diverse on-site testing needs for concrete structures
● High-precision Measurement: Adopts multi-coil structure design with super dense rebar resolving power, effectively solving the problem of rebar leakage detection
● Intuitive Operation & Display: 2.8-inch high-resolution color LCD screen with 320×240 pixels, clear data reading in both indoor and outdoor environments; indicator light and buzzer prompt for real-time rebar position judgment
● Convenient One-handed Operation: Equipped with four high-strength wear-resistant tires for smooth sliding detection; humanized silicone keypad for easy parameter setting and function selection
● Powerful Data Management: Stores up to 200,000 rebar measuring point data, supporting real-time data viewing, USB transmission and one-click clearing; professional PC software for data analysis and report generation
● Long Endurance & Universal Charging: Built-in high-capacity lithium battery with standby time of ≥16 hours; Micro USB interface for both data transmission and charging, compatible with standard charging devices
● Flexible On-site Testing: Real-time judgment of the middle position of adjacent rebars for safe drilling and coring; X/Y axis interleaved switching in grid detection for improved field test flexibility
● Intelligent Calibration & Error Correction: Automatic storage of calibration values for rapid measurement; support for thickness error correction and one-click air calibration to eliminate environmental interference
● Compact & Durable: Integrated structural design with small size and light weight for easy carrying and field operation; sturdy casing with protective lining for better equipment protection
Applications
Rebar reinforcement cover Detector is widely used in building construction, acceptance, reinforcement, renovation and supervision.
