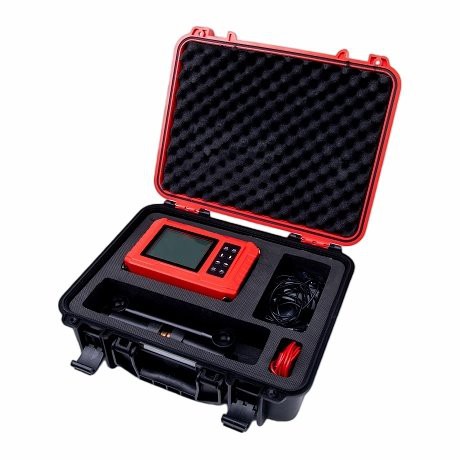

Dalian Yheng Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of rebar corrosion detector in China. Welcome to buy high quality rebar corrosion detector in stock here from our factory. If you have any enquiry about customized service, please feel free to email us.
|
Measurement Range |
Potential ±999 mV; gradient measurable with 20cm electrode spacing |
|
Measurement Accuracy |
±1 mV |
|
Measurement Point Interval |
1~100 cm (adjustable) |
|
Data Storage Capacity |
5400 measurement zones / 11000 measurement points |
|
Maximum Measurable Area |
8100 ㎡ |
|
Display |
160×128 resolution LCD screen |
|
Power Supply |
6×LR6 alkaline batteries, continuous working time ≥30 hours |
|
Dimensions & Weight |
Main unit 210×153×90mm, 880g; Probe φ30mm×180mm, 100g |
|
Working Environment |
Temperature 0℃~+40℃ (avoid direct sunlight); Relative humidity ＜90% RH; No strong electromagnetic interference |
Features
● Non-destructive High-precision Detection: Adopts electrochemical methods to test rebar corrosion without damaging concrete structures, realizing accurate measurement of potential and potential gradient
● Intuitive Data Display: Measurement data presented in numerical and graphical forms; corrosion degree indicated by 9-level gray scale and color chromatograms for direct visual judgment
● Flexible Measurement Modes: Supports both potential and gradient measurement, with gradient measurement requiring no concrete drilling for more convenient on-site operation
● Powerful Data Management: Large-capacity data storage for massive measurement points and zones; supports data browsing, deletion, and transmission via USB/serial port
● Professional PC Data Analysis Software: Equipped with dedicated software for in-depth data processing, multi-form graph analysis (chromatogram, equivalent line, simulation graph) and one-click automatic report generation (Word/Excel)
● Easy On-site Operation: Humanized keyboard design with simple parameter setting; real-time display of measurement data and corrosion status; background light switch for clear viewing in various light conditions
● Long Working Endurance: Powered by alkaline batteries with over 30 hours of continuous use, meeting the needs of long-time on-site field testing
● Wide Measurement Coverage: Large measurable area, adjustable measurement point intervals, adaptable to corrosion detection of concrete structures of different scales and specifications
Applications
Rebar Corrosion Detector is widely used in building construction, acceptance, reinforcement, renovation and supervision.
