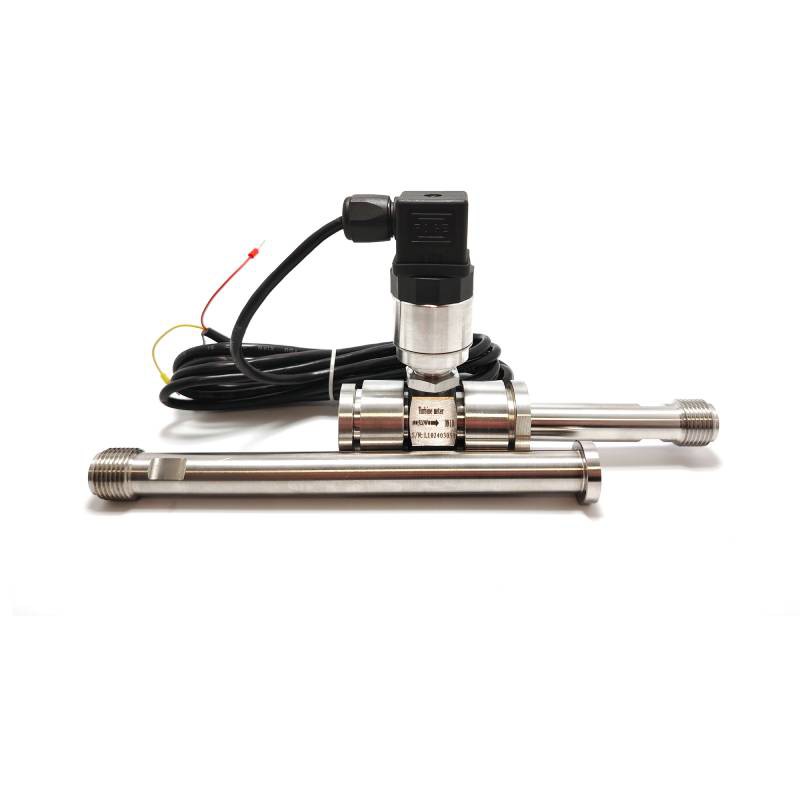

Dalian Yheng Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of non-display turbine flow meter in China. Welcome to buy high quality non-display turbine flow meter in stock here from our factory. If you have any enquiry about customized service, please feel free to email us.
|
Items |
Parameters |
|
|
Power supply |
24VDC power supply, current ≤10mA |
|
|
Power supply & Output |
Transducer |
Pulse/4-20mA output |
|
Transmitter |
Pulse + 4-20mA output (Optional: RS485) |
|
|
Medium temperature |
-20 ~ +120℃ |
|
|
Ambient temperature |
-20 ~ +50℃ |
|
|
Flow range of different pipe size |
4mm |
0.04-0.25m³/h |
|
6mm |
0.1-0.6m³/h |
|
|
10mm |
0.2-1.2m³/h |
|
|
12mm |
0.4-2m³/h |
|
|
15mm |
0.6-3.6m³/h |
|
|
20mm |
0.7-7m³/h |
|
|
25mm |
1-10m³/h |
|
|
32mm |
1.5-15m³/h |
|
|
40mm |
2-20m³/h |
|
|
50mm |
4-40m³/h |
|
|
65mm |
7-70m³/h |
|
|
80mm |
10-100m³/h |
|
|
100mm |
20-200m³/h |
|
|
125mm |
25-250m³/h |
|
|
150mm |
30-300m³/h |
|
|
200mm |
80-800m³/h |
|
|
Connection method |
Thread or Flange |
|
|
Transducer material |
SS304 (Optional: SS316) |
|
Features
● Pulse Signal Output: Generates a raw frequency signal directly proportional to flow velocity, ideal for integration with remote totalizers, frequency converters, or control systems.
● Durable Bearing Design: Incorporates a thrust-type hard alloy bearing structure that enhances wear resistance and ensures long-term measurement stability.
● Minimal Flow Interruption: Features a low-pressure drop design, allowing for efficient system operation and maintaining energy savings during continuous flow.
● Broad Pipe Size Compatibility: Available in a wide range of diameters, covering flow requirements from minimal rates (e.g., 0.04 m³/h for 4mm pipes) to high-volume industrial flows.
● Corrosion-Resistant Construction: Wetted components are manufactured using stainless steel grades 1Cr18Ni9Ti and 2Cr13, combined with corundum and cemented carbide, providing excellent resistance to chemical corrosion.
● High Noise Immunity: Engineered to withstand electromagnetic interference and mechanical vibration, ensuring signal integrity in electrically noisy or physically dynamic industrial environments.
● Simplified Installation: Compact design with no local display allows for straightforward installation in tight spaces and direct integration into existing pipeline systems via threaded or flanged connections.
Applications
It is widely adopted in industrial sectors requiring remote signal transmission to centralized control systems, such as PLCs, DCS, or specialized display instruments.
