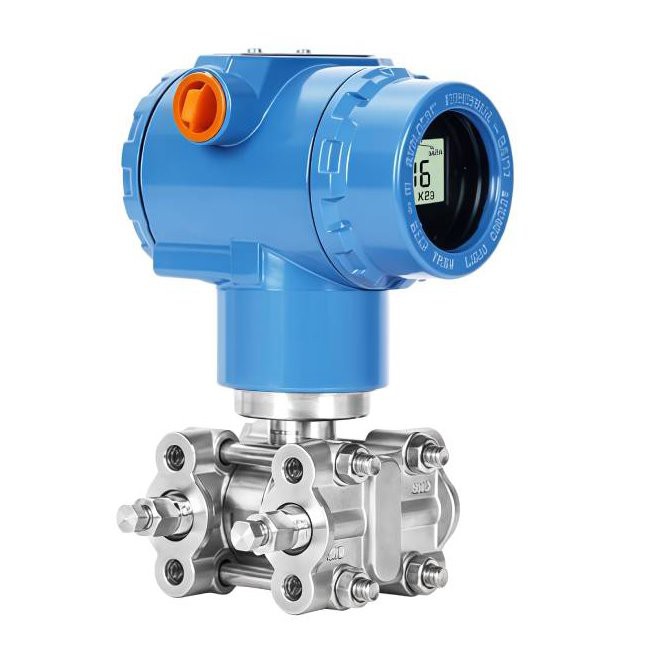

Smart Differential Pressure Transmitter

Our Smart Differential Pressure Transmitter is engineered for demanding applications requiring precise measurement of differential pressure, flow, and liquid level.

● High Accuracy & Reliability
● Robust & User-Friendly
● Remote HART Communication

Advantage
Utilizing advanced sensor technology and a robust design, it provides exceptional accuracy and long-term stability. The integrated HART communication protocol allows for remote configuration and monitoring, significantly reducing maintenance costs and improving process efficiency.

Send Inquiry

Dalian Yheng Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of smart differential pressure transmitter in China. Welcome to buy high quality smart differential pressure transmitter in stock here from our factory. If you have any enquiry about customized service, please feel free to email us.

Output Signal	DC 4-20mA + HART Protocol
Output Mode	Linear or Square Root (remotely adjustable)
Measurement Ranges	Available from 0~0.125kPa up to 0~2.5MPa (See range table)
Accuracy	Range Ratio < 5:1: ≤ ±0.1 % FS Range Ratio ≥ 5:1: ≤ ±0.25 % FS
Explosion Protection	Intrinsic Safety Ex ia II C T6 Ga
Power Supply	8 ~ 30 VDC
Process Temperature Limit	-40 to 104℃
Damping	Adjustable from 0.1 to 32 seconds (0.1 sec increments)
Stability	±0.5% URL over 6 months
Housing	Robust, weather-proof design suitable for all-weather use

Features

● Remote HART Communication: Configure parameters, modify ranges, and monitor variables in real-time via the HART protocol without interrupting plant operation.

● High Accuracy & Reliability: Delivers precise measurements with accuracy up to ±0.1% FS (Range Ratio <5:1) and features intelligent linearization for reliable data.

● Hazardous Location Certified: Suitable for explosive atmospheres with Ex ia II C T6 Ga intrinsic safety certification (requires safety barrier).

● Robust & User-Friendly: Features a rugged, vibration-resistant design with solid-state components. Offers continuous on-site adjustment of zero, span, and damping.

● Built-in Protection: Equipped with reverse polarity protection and current limiting circuits on the circuit board to prevent accidental damage.

Applications

Differential Pressure Transmitter are mainly used in industrial settings to continuously measure the pressure, level, and flow rate of liquids, gases, and steam, and output standard signals to the control system.
