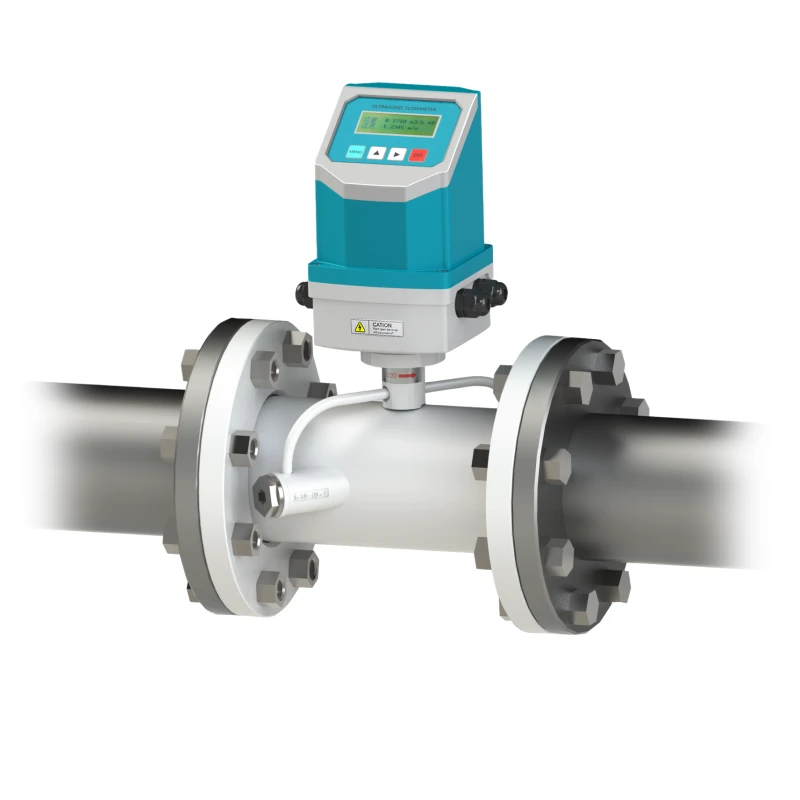

Dalian Yheng Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of pipeline ultrasonic flow meter in China. Welcome to buy high quality pipeline ultrasonic flow meter in stock here from our factory. If you have any enquiry about customized service, please feel free to email us.
|
Parameters |
Specifications |
|
Measuring Range |
π-Type: DN15~DN32mm; Standard Type: DN40~DN1000mm |
|
Accuracy |
±0.5% for both π-Type and Standard Type |
|
Temperature Range |
-30℃~160℃ (measured fluid); -20℃~60℃ (converter) |
|
Pressure Range |
π-Type: 0~4.0Mpa; Standard Type: 0~2.5Mpa (optional) |
|
Flange Standard |
GB/T 9119-2000 (DN15~300); JB/T 81-94 (DN350~1000) |
|
Fluid Velocity |
0~7m/s |
|
Turbidity Tolerance |
≤10000ppm (little bubble allowed) |
|
Interfaces |
RS485 (MODBUS), 4-20mA analog I/O, OCT pulse, Relay signal |
|
Power Supply |
DC8~36V; AC85~264V (optional) |
|
Power Consumption |
1.5W |
Applications:
Flow measurement of sound-conductive single liquids (tap water, seawater, sewage, industrial effluent, chemicals, alcohol, oil)
Municipal water supply and drainage engineering
Petrochemical production and processing systems
Food and beverage manufacturing industry
Environmental protection wastewater treatment projects
Industrial process control and pipeline flow monitoring
